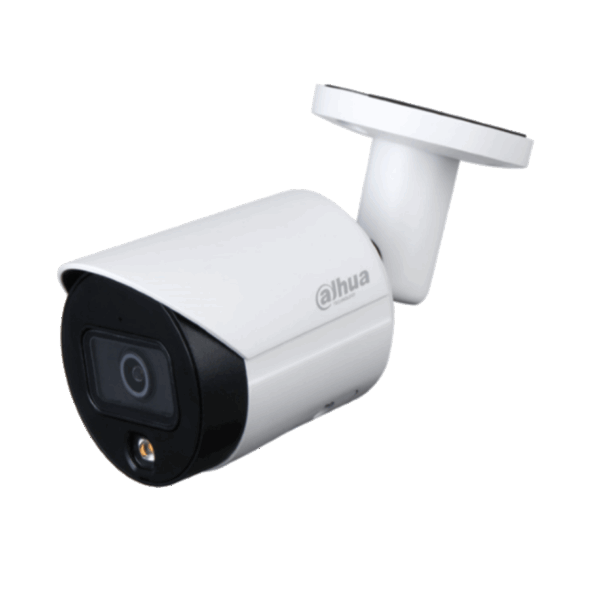

IPC-HFW2239SP-SA-LED-S2

Dahua รุ่น IPC-HFW2239SP-SA-LED-S2

2MP Lite Full-color Fixed-focal Bullet Network Camera

  • 1/2.8″ 2 Megapixel progressive CMOS
  • รองรับระบบ H 265 & H264 dual-stream encoding
  • ความละเอียด 2 ล้านพิกเซล (1920 X 1080) @25/30 fps
  • WDR(120dB)(ย้อนแสง), (CR), 3DNR, AWB, AGC, BLC
  • เลนส์ 3.6 mm
  • LEDอินฟราเรทระยะ 30 เมตร
  • มาตรฐานกันน้ำกันฝุ่น IP67
  • รองรับ PoE
ผู้รับเหมาและโครงการต่างๆต้องการขอราคาพิเศษ ติดต่อใบเสนอราคา E-mail : focus.sys@hotmail.com TEL : 0631963553 IDLine : 0899181181

คำอธิบาย

Camera
Image Sensor 1/2.8” 2Megapixel progressive CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination 0.0017 Lux@F1.0
S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm

3.6 mm

Max. Aperture 2.8 mm: F1.0

3.6 mm: F1.0

Field of View 2.8 mm: Horizontal 107° × Vertical 55° × Diagonal 127°

3.6 mm: Horizontal 91° × Vertical 47° × Diagonal 109°

Iris Type Fixed
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)

3.6 mm: 1.3 m (4.3 ft)

DORI Distance Lens Detect Observe Recognize Identify
2.8mm 38.6m

(126.6 ft)

15.4m

(50.5 ft)

7.7 m

(25.3 ft)

3.9 m

(12.8 ft)

3.6mm 49.7m

(163.1 ft)

65.3m

(108.6 ft)

32.5m

(54.5 ft)

18.0m

(27.2 ft)

Smart event
IVS Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream:

1920 × 1080 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 72 M.)
Storage Dahua Cloud; FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser IE

Chrome

Firefox

Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption < 6.0W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection Grade IP67
Structure
Casing metal
Dimensions 166.2 mm × Φ70 mm (6.5″ × Φ2.8″)
Net Weight 0.473 kg (1.0 lb)
Gross Weight 0.574 kg (1.3 lb)
