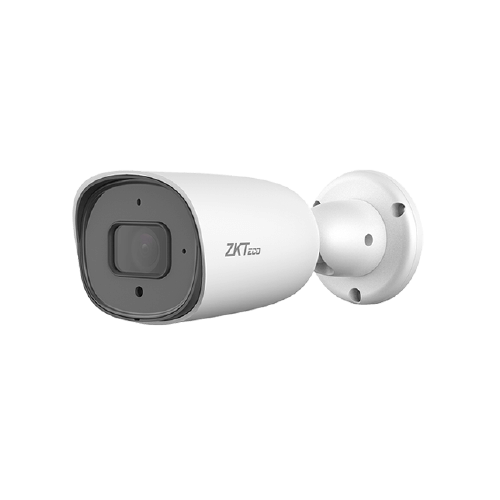

Specifications ZKTeco BS-852O22C-S5-MI
| Features | Specifications |
|---|---|
Camera |
|
| Product Type | 2MP Fixed Lens Bullet IP Camera with Face Detection |
| Image Sensor | 1/2.9″ CMOS |
| Effective Pixels | 1920 × 1080 |
| Flash / DDR | 128Mb / 512Mb |
| S/N Ratio | ≥50 dB |
Lens |
|
| Lens Type | Fixed Board-in Lens |
| Focal Length | 3.6 mm |
| Aperture | F2.0 |
| Field of View | 90° |
| Optical Zoom | N/A |
Video |
|
| Video Compression | H.265 / H.264 |
| Resolution | 1080P (1920 × 1080) / 1.3MP (1280 × 960) / 720P (1280 × 720) |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.265: 128 Kbps–6 Mbps; H.264: 128 Kbps–6 Mbps |
| Main Stream | 1080P @ 25fps / 960P @ 25fps / 720P @ 25fps |
| Sub Stream | D1 @ 25fps / VGA @ 25fps / CIF @ 25fps |
| Third Stream | N/A |
| Motion Detection | Supported |
| Digital Zoom | Supported |
| Day / Night | Supported |
| WDR | DWDR |
| Noise Reduction | 2D / 3D DNR |
| HLC | Supported |
| BLC | Supported |
| ROI | 4 Areas |
| Privacy Mask | 4 Areas |
| Mirror / Flip | Supported |
| Corridor Mode | Supported |
Intelligent Video |
|
| Intelligent Video | Face Detection |
| Face Detected Per Frame | Up to 5 Faces |
| Detected Face Size | 80 × 80 to 300 × 300 Pixels |
| Face Quality Filtering | Supported |
| Detection Area | User-defined |
| Capture Response | ≤200 ms |
Night Vision |
|
| IR LED | 2 IR LEDs |
| IR Distance | Up to 30 m |
Audio |
|
| Audio | Built-in Microphone |
| Audio Compression | G.711u |
Network |
|
| Ethernet | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP |
| Interoperability | ONVIF / GB28181 |
| Maximum Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software | AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS |
| Operating System | Windows |
| Mobile Application | AntarView Pro |
| P2P Cloud Service | Supported |
Interface & Power |
|
| Power Supply | PoE (IEEE 802.3af) / DC 12V ±10% |
| Power Consumption | <3.7W |
| Audio I/O | Built-in Microphone |
| Alarm I/O | N/A |
| RS-485 | N/A |
| Micro-SD Slot | N/A |
| ANR | N/A |
| USB | N/A |
General |
|
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions | 171 × 75 × 66 mm |
| Net Weight | 0.36 kg |
| Gross Weight | 0.49 kg |
Note: The ZKTeco BS-852O22C-S5-MI is a 2MP fixed-lens bullet IP camera with face detection, 3.6mm lens, up to 30m IR distance, H.265/H.264 compression, built-in microphone, PoE support and IP67 protection.
