Model

Model

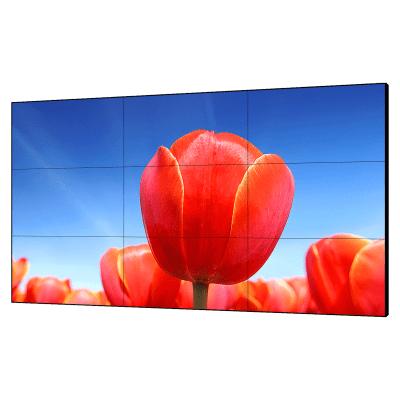

LS550UCM-EF

System

Diagonal

55″(16:9)

LCD Technology

ADS

Resolution

1920×1080 (FHD)

Bezel width

2.3mm(U/L), 1.2mm(R/B)

Backlight

Direct LED

Brightness/Luminance

500 cd/m²

Contrast Ratio

1400:1

Pixel Density

40dpi

Viewing Angle

H178°, V178°

Response time

8ms

Display Color

8bit(16.7M)

Color Temperature

10,000K

MTBF

50,000h

Signals

Input

CVBS(BNC)×1, VGA(D-Sub)×1, DVI-D×1, HDMI×1, RS232×1, USB×2, Audio×1, IR×1

Output

CVBS(BNC)×1, RS232×1, HDMI×2, VGA×1, Audio×1

General

Consumption (Standard)

150W

Consumption (Standby)

≤0.5W

Power Supply

AC100V～AC240V, 50/60 Hz

Installation Mode

Floor-standing, wall-mounted

VESA

600×400mm, M6

Control Mode

Infrared, RS232 dual mode, supporting remote PC control

Gross Weight

37kg(81.4Ib)

Net Weight

30kg(66Ib)

Dimension (W×H×D)

1213.7mm×684.5mm×106.5mm(47.8″×26.9″×4.2″)

Package (W×H×D)

1324mm×936mm×244mm(52.1″×36.9″×9.6″)

Work Environment

Temperature

0℃~+50℃

Humidity

10%RH~80%RH
