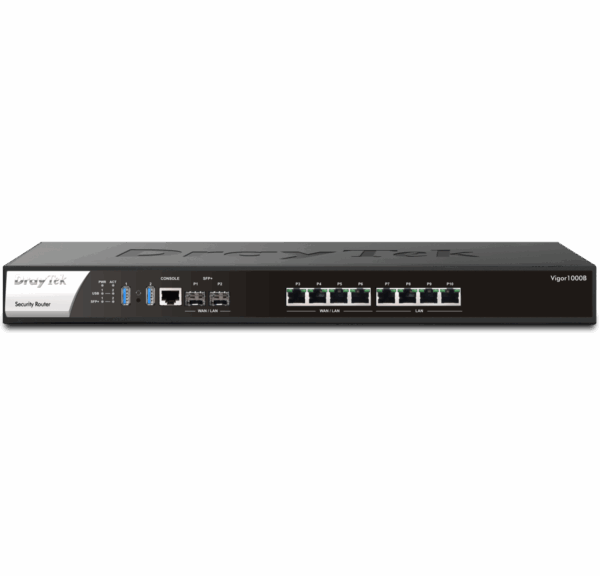

DrayTek Vigor1000B

DrayTek รุ่น Vigor1000B


  • DrayTek Vigor1000B 6-WAN Load Balance Router
  • 4 Port Lan Gbps, 2 SFP+ รองรับความเร็ว Internet  9.4Gbps
  • รองรับ Clientได้ 500 Host
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

DrayTek Vigor1000B

6-WAN Load Balance Router, 4 Port Lan Gbps, 2 SFP+ รองรับความเร็ว Internet  9.4Gbps, รองรับ Clientได้ 500 Host


DrayTek Vigor1000B 6-WAN Load Balance Router, 4 Port Lan Gbps, 2 SFP+

Quad-Core CPU ความเร็ว Internet สูงถึง 9.4Gbps

Loadbalance 6 Wan
4 Port Lan Gigabit
2 Port SFP+ ความเร็ว 10Gbps

1,000,000 NAT Session รองรับได้มากกว่า 500 Client

รองรับ 4G LTE USB Modem

** ไม่รองรับการทำ VPN **

WAN/LAN Switchable Port 2x 10G SFP+ Fiber Slots
4x 1G/100M/10M Ethernet, RJ-45
Fixed LAN Port 4x 1G/100M/10M Ethernet, RJ-45
USB Port 2x USB 3.0 for storage
Console Port 1x RJ-45
Button 1x Factory Reset
NAT Throughput 9.4 Gbps
NAT Sessions 1,000,000
Max. Concurrent VPN Tunnels 2
Max. Concurrent OpenVPN + SSL VPN 2
Internet Connection
IPv4 PPPoE, DHCP, Static IP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Load Balancing IP-based, Session-based
WAN Active on Demand Link Failure, Traffic Threshold
Connection Detection ARP, Ping, Strict ARP
WAN Data Budget
Dynamic DNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 100
Number of LAN Subnet 100
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
IP Pool Count Up to 4K per LAN Subnet
PPPoE Server
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2
Policy-based Routing Protocol, IP Address, Port, Domain, Country
High Availability Active-Standby, Hot-Standby
DNS Security (DNSSEC)
IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
Local RADIUS server
SMB File Sharing (Requires external storage)
VPN (for management purpose)
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN(Host to LAN)
User Authentication Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication Pre-Shared Key, X.509, XAuth, EAP
IPsec Authentication SHA-1, SHA-256, MD5
Encryption MPPE, DES, 3DES, AES
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Service Type
VoIP Prioritization
Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Central AP Management 50 VigorAPs
Central Switch Management 30 VigorSwitches
Rack Mountable Mouting Kit Included
Dimension 443 mm x 285 mm x 45 mm
Weight 3.32 kg
Power AC 110~220V @ 1A
Max.Power Consumption 32 watts
Operating Temperature 0 to 45°C
Storage Temperature -10 to 55°C
Operating Humidity (non-condensing) 10 to 90%
Certificate CE, FCC

PDF ดาวน์โหลด
