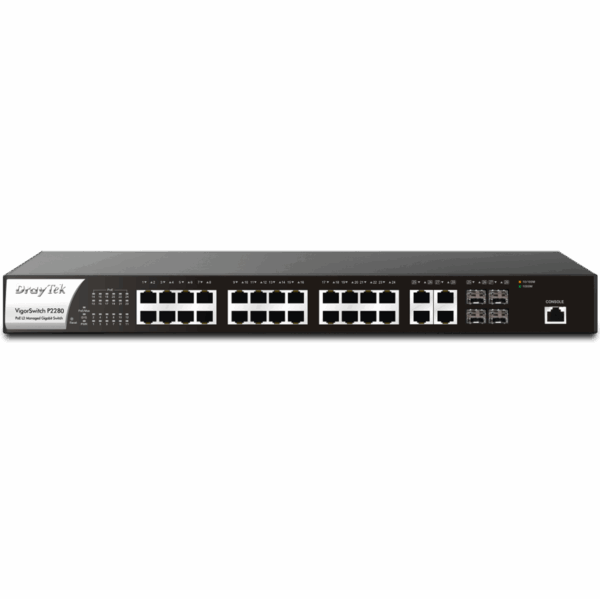

DrayTek VigorSwitch P2280
DrayTek รุ่น VigorSwitch P2280
PoE Web Smart Giga Switch
- พอร์ตที่รองรับ 24 Gigabit และพอร์ตคอมโบ Gigabit SFP/RJ-45 4 พอร์ต
- Power budget PoE 340 วัตต์ & กำหนดการ PoE (P2280)
- VLAN ที่ใช้แท็ก 802.1Q Auto Voice VLAN เพื่อการปรับใช้ VoIP ที่ง่ายดายและคุณภาพการโทรที่ดีที่สุด
- QoS พร้อมลำดับความสำคัญ 8 คิวและการจำกัดอัตรา
- รองรับ IPv4/IPv6 แบบสแต็กคู่ สอดคล้องกับการจัดการสวิตช์ของเราเตอร์ Vigor
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
DrayTek VigorSwitch P2280
DrayTek VigorSwitch P2280 is a Layer 2 Managed Gigabit PoE switch. It has 24x Gigabit Ethernet PoE/PoE+ ports with a power budget of 385 watts. It also equipped with 4x GbE/SFP combo ports, 1x console port, and enterprise-level features to help businesses to improve network security and stability.
Interface |
|
| LAN Port | 24x 10/100/1000Mbps Ethernet, RJ-45 4x Gigabit Ethernet, RJ-45/SFP Combo |
| Console Port | 1x Gigabit Ethernet, RJ-45 |
| Button | 1x Factory Reset Button |
PoE |
|
| PoE Capable Ports | 24 |
| PoE Standards | PoE/PoE+(802.3af/802.3at), Type mode A |
| PoE Power Budget | 385 watts |
| Power Limit | |
| Scheduled On/Off | |
| Power Cycle on Port | Manual, Ping Watchdog |
Capacity |
|
| Buffer Size | 4.1 Mbit |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps (64 bytes) |
| MAC Address Table | 8k |
| Jumbo Frame | Up to 9KB |
Networking Standards |
|
| IP Version | IPv4, IPv6 |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1ad QinQ 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
VLAN |
|
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based MAC-based Protocol-Based Management VLAN Voice VLAN Surveillance VLAN |
| Port Isolation | |
| GVRP | |
| Q-in-Q | Basic |
ONVIF Surveillance |
|
| Discovery | |
| Surveillance Topology | |
| Real-Time Video Streaming | |
| ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
QoS |
|
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limit & Shaping | |
Security |
|
| Access Control List | MAC, IPv4, IPv6 |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| DoS Defense | |
| 802.1x Port Access Control | |
| IP Source Guard | |
| IP Conflict Detection | |
| IP Conflict Prevention | |
| Loop Protection | |
| Dynamic ARP Inspection | |
| DHCP Snooping with Option 82 | |
Link Aggregation |
|
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | MAC Address, IP/MAC Address |
Multicast |
|
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | |
| MLD Snooping | v1, v2 (Basic) |
| Max. Number of Multicast Group | 256 |
| Group Throttling | |
| Group Filtering | |
| MVR (Multicast VLAN Registration) | |
Management |
|
| Web Interface | HTTP, HTTPS |
| Command Line Interface | Telnet, SSH v2 |
| OpenVPN Client | Certificate-based authentication |
| User Authentication | Local Database, RADIUS, TACACS+ |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| LLDP | LLDP, LLDP-MED |
| Mail Alert | Port Status, Port Speed, System Restart, IP Conflict |
| Syslog | |
| 2-Level Admin Privilege | |
| Multiple Admin Accounts | |
| Managed by VigorRouter SWM | |
| Managed by VigorConnect | |
| Managed by VigorACS 2 | |
| Config File Export/Import | |
| Dual Image | |
| SNTP (Simple Network Time Protocol) | |
| Diagnostics Tools | Port Mirroring, Ping, Cable Test |
Physical |
|
| 19-inch Rack Mountable | Mouting Kit Included |
| Max. Power Consumption | 453.3 watts |
| Dimension | 441mm x 270mm x 45mm |
| Weight | 4.3 kg (9.0 lb) |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| Certificate |   |
Notes :
- All specifications are subject to change without notice.
- The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
