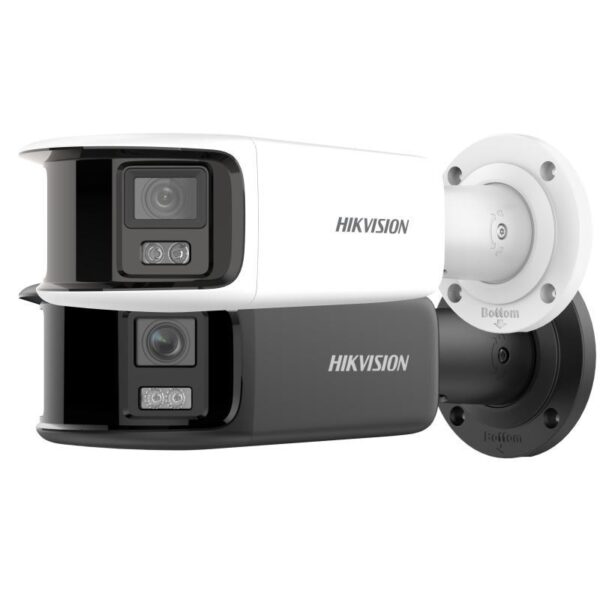

Specifications Hikvision DS-2CD2T87G2P-LSU/SL
| Features | Specifications |
|---|---|
Camera |
|
| Product Type | 8MP Panoramic ColorVu Fixed Bullet Network Camera |
| Image Sensor | 2 × 1/1.8″ Progressive Scan CMOS |
| Maximum Resolution | 5120 × 1440 |
| Minimum Illumination | Color: 0.0005 Lux @ F1.0; 0 Lux with Light |
| Shutter Time | 1/3 s to 1/100,000 s |
Lens |
|
| Lens Type | Fixed Focal Lens, Dual Lens |
| Focal Length | 4 mm |
| Field of View | Horizontal: 180° ±10°; Vertical: 44° |
| Aperture | F1.0 |
| Lens Mount | M16 |
| Depth of Field | 3.6 m to ∞ |
DORI |
|
| Detect | 77 m |
| Observe | 30 m |
| Recognize | 15 m |
| Identify | 7 m |
Illuminator |
|
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Supported |
Video |
|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Main Stream | 5120 × 1440 @ 20fps |
| Main Stream with WDR | 12.5fps @ 50Hz / 15fps @ 60Hz |
| Sub Stream | 1920 × 536 / 960 × 272 |
| Sub Stream with WDR | 12.5fps @ 50Hz / 15fps @ 60Hz |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Bit Rate Control | CBR / VBR |
| ROI | 1 Fixed Region for Main Stream |
| SVC | H.264 / H.265 Encoding |
Image |
|
| Wide Dynamic Range | 130 dB WDR |
| Image Enhancement | BLC / HLC / 3D DNR |
| SNR | ≥52 dB |
| Day / Night | Day / Night / Auto / Schedule |
| Privacy Mask | 8 Rectangular Areas |
| Image Parameters | Saturation / Brightness / Contrast / Sharpness / Gain / White Balance |
Audio |
|
| Audio Type | Mono Sound |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Environment Noise Filtering | Supported |
Network |
|
| Ethernet | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | TCP/IP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / NTP / UPnP / SMTP / SNMP / IGMP / 802.1X / IPv4 / IPv6 / UDP |
| Simultaneous Live View | Up to 6 Channels |
| Interoperability | ONVIF Profile S / Profile G / Profile T |
| Maximum Users | Up to 32 Users |
| Network Storage | NAS (NFS / SMB/CIFS) / ANR / NVR |
| Client Software | iVMS-4200 / Hik-Connect / Hik-Central |
Interface |
|
| Memory Card | MicroSD / MicroSDHC / MicroSDXC, Up to 512 GB |
| Audio Input | 1 × Line In |
| Audio Output | 1 × Line Out |
| Alarm Input | 1 |
| Alarm Output | 1, Max. 24 VDC, 1 A |
| Reset Key | Supported |
Intelligent Video |
|
| Human / Vehicle Classification | Supported |
| Perimeter Protection | Line Crossing / Intrusion / Region Entrance / Region Exiting |
| Target Classification | Human / Vehicle |
| Active Deterrence | Flashing Light / Audio Alarm |
General |
|
| ColorVu | 24/7 Color Imaging |
| Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
Note: The Hikvision DS-2CD2T87G2P-LSU/SL is an 8MP panoramic ColorVu fixed bullet camera with dual 1/1.8″ CMOS sensors, 180° horizontal FOV, F1.0 aperture, 40m white-light illumination, 130dB WDR, human and vehicle classification, active deterrence and IP67 protection.
