| Features |
Description |
| Product Type |
16-Port Fast Ethernet Smart Managed PoE Switch |
| Network Ports |
16 × 10/100Mbps PoE RJ45 + 2 × Gigabit Combo |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Budget |
230W |
| Max. Port Power |
30W per PoE Port |
| Switching Capacity |
7.2Gbps |
| Forwarding Rate |
5.3568Mpps |
| Management |
Smart Managed / Network Topology Management |
| NETWORK |
| PoE Ports |
16 × 10/100Mbps RJ45 PoE |
| Uplink Ports |
2 × Gigabit Combo Ports |
| Port Type |
RJ45 Full Duplex, MDI/MDI-X Adaptive |
| Standards |
IEEE 802.3 / 802.3u / 802.3x / 802.3ab / 802.3z |
| Forwarding Mode |
Store-and-Forward |
| MAC Address Table |
16K |
| Internal Cache |
4Mbits |
| Working Mode |
Standard Mode / Extend Mode |
| PoE |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Ports |
Ports 1–16 |
| Max. Port Power |
30W |
| PoE Power Budget |
230W |
| High Priority Ports |
Ports 1–8 |
| PoE Watchdog |
Detects and Restarts Unresponsive Cameras |
| Long Range PoE |
Up to 300m in Extend Mode |
| PoE Surge Protection |
6kV |
| MANAGEMENT & LAYER 2 |
| VLAN |
IEEE 802.1Q VLAN |
| STP |
STP / RSTP Loop Prevention |
| Link Aggregation |
Static Link Aggregation on G1 / G2 |
| Port Configuration |
Port Rate / Flow Control / Switch Configuration |
| Port Statistics |
Real-Time and 7-Day Peak Traffic Statistics |
| VIP Ports |
Priority Data Forwarding for High-Priority Ports |
| Cable Detection |
Supported |
| NETWORK MANAGEMENT |
| Topology Management |
Network Topology Display |
| Network Health Monitor |
Real-Time Network Health Monitoring |
| Alarm |
Device Status / PoE Max / PoE Status Alarm |
| Remote Upgrade |
Supported |
| Configuration |
Basic Network Configuration / Import / Export |
| Logs |
Log Viewing |
| Client Management |
Supported |
| POWER & PHYSICAL |
| Power Supply |
100–240V AC, 50/60Hz |
| Maximum Power Consumption |
250W |
| Housing |
Metal |
| Cooling |
Fan-Free Design |
| Dimensions |
440 × 44 × 220.8mm |
| Net Weight |
2.59kg |
| Installation |
Rack Mount |
| ENVIRONMENT |
| Operating Temperature |
-10°C to +55°C |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
5%–95% RH, Non-Condensing |
| Storage Humidity |
5%–95% RH, Non-Condensing |
| Certifications |
FCC / CE / RCM / IC / RoHS / WEEE / REACH |

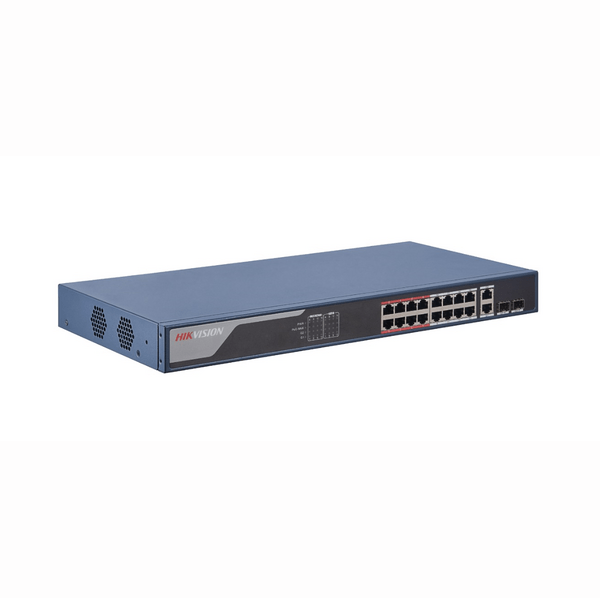

Note: The DS-3E1318P-EI is a smart managed PoE switch designed for IP surveillance networks, providing 16 Fast Ethernet PoE ports, 2 Gigabit Combo uplinks, a 230W PoE budget and network topology management.
Important: The 300m Long Range PoE feature requires Extend Mode and is limited to 10Mbps full/half-duplex communication. Actual transmission distance depends on cable quality and connected devices.
