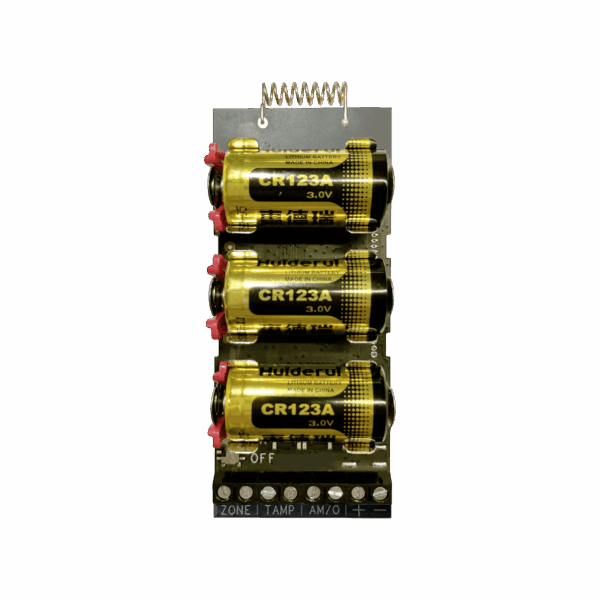

DS-PM1-I1-WB

Hardware features

• Serial port1
• Power switch1
• Alarm input1 Alarm, 1 Tamper
• Alarm output1 PGM, AM/Output
• 3.3v Output1, up to 10mA

Electrical characteristics

• Power supply3 CR123
• Operation humidity10%~90%
• Operation temperature–10℃ ~ 55℃
• Power consumption

  Quiescent current: 40.29 uA

  Max current: 47.85mA

  Voltage: 3 VDC

• Battery life spanMore than 5 years (report alarm 50 times per day)

Wireless transmission

• RF frequency433MHz
• RF methodTwo-way communication
• RF modulation2GFSK
• RF distance1300m

Display

• Indicator3: Alarm/Tamper（Red）, Fault（Amber）, Signal Strength（Green/Red）

General

• Installation methodPut inside Wireless Ready Detector
• Dimension(WxHxD)102*41*20mm
• Weight35g(Without Battery), 90g(With Battery)
