| Features |
Specifications |
| Brand |
GENATA |
| Model |
GNT-ND6016 |
| Product Type |
IP Camera Decoder |
| Channel Support |
Up to 16 Channels |
| Video Resolution Support |
5MP / 1080P |
| Video Compression |
H.265+ / H.265 / H.264 |
| ONVIF |
Supported |
| Transmission Distance |
Up to 100 meters |
Video & Audio Output
| Features |
Specifications |
| HDMI Output |
Up to 4K |
| VGA Output |
1920 × 1080 (1080P) |
| Audio Input |
1 × Audio Input |
| Audio Output |
1 × Audio Output |
| Display Mode |
Multi-Screen Display |
Network & Interface
| Features |
Specifications |
| Network Interface |
1 × RJ45 Ethernet Port |
| Network Speed |
10/100/1000 Mbps |
| ONVIF Protocol |
Supported |
| Remote Viewing |
Supported via Network Connection |
| Network Cable |
CAT5 / CAT5E / CAT6 |
USB Interface
| Features |
Specifications |
| USB Ports |
2 × USB 2.0 |
| Mouse Control |
Supported |
Power & Protection
| Features |
Specifications |
| Power Input |
DC 12V |
| Lightning Protection |
6KV |
| ESD Protection |
8KV |
Additional Features
| Features |
Specifications |
| Automatic Networking |
Supported |
| One-Click Device Addition |
Supported |
| Real-Time Monitoring |
Supported |
| Plug & Play |
Supported |
| Language Support |
Up to 20 Languages |
Hardware & General
| Features |
Specifications |
| Dimensions |
130 × 78 × 35 mm |
| Weight |
Approximately 0.35 kg |
| Operating Temperature |
-30°C to 60°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% (Non-Condensing) |
| Certifications |
CE, FCC and RoHS 2.0 |

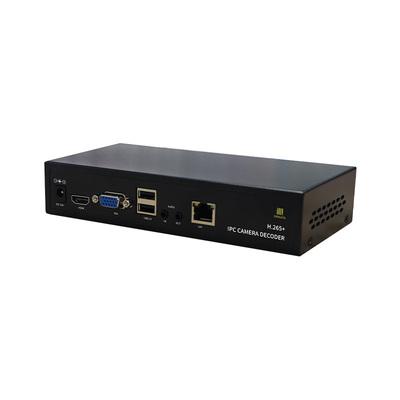

Note: GENATA GNT-ND6016 is a 16-channel IP camera decoder supporting 5MP/1080P video, HDMI 4K output, VGA 1080P output, H.265+/H.265/H.264 decoding and ONVIF connectivity.
Important: This product is described as an IP camera decoder rather than a conventional NVR. Confirm storage and recording functions before using it in a video recording system.
