| Features |
Specifications |
| Product Type |

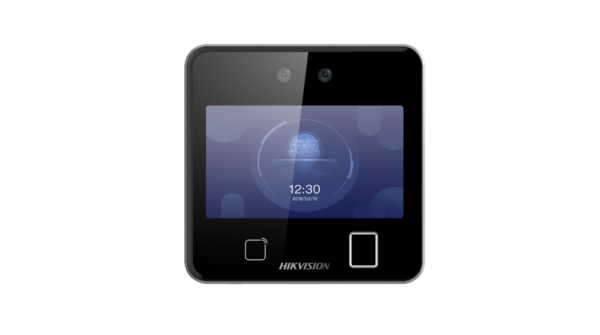

Pro Series Face Recognition Terminal |
| Display |
4.3-inch IPS Capacitive Touchscreen, 800 × 480 |
| Camera |
2 MP wide-angle dual-lens camera |
| Field of View |
HFOV 41.5°, VFOV 75.5°, DFOV 87° |
| Face Recognition Distance |
0.3 to 3 m |
| Face Recognition Speed |
< 0.2 s/User |
| Face Recognition Accuracy |
≥ 99% |
| Face Capacity |
Up to 6,000 faces |
| Card Capacity |
Up to 10,000 cards |
| Event Capacity |
Up to 150,000 events |
| Card Type |
Mifare 1 Card |
| Card Reading Frequency |
13.56 MHz |
Authentication & Functions
| Features |
Specifications |
| Authentication Methods |
Face and Card |
| Fingerprint |
Not supported |
| QR Code Recognition |
Supported |
| Face Anti-Spoofing |
Supported |
| Mask Detection |
Forced mask wearing and face mask wearing alerts |
| Attendance |
Check in, check out, break in, break out, overtime in, overtime out |
| Audio Prompt |
Supported |
| Time Synchronization |
Supported |
| Two-Way Audio |
Supported with indoor station and main station |
| Remote Access |
Remote door opening and live view via Hik-Connect |
| Web Management |
Configuration via web client |
Network & Communication
| Features |
Specifications |
| Wired Network |
10/100/1000 Mbps self-adaptive |
| Wi-Fi |
Supported |
| Communication Protocol |
ISUP 5.0, ISAPI, NetSDK, HikCentral Pro OpenAPI, Hik-ProConnect OpenAPI |
| Network Interface |
1 × RJ45 |
| RS-485 |
1 × RS-485 |
| Wiegand |
1 × Wiegand |
| USB |
1 × USB |
Access Control Interface
| Features |
Specifications |
| Lock Output |
1 |
| Exit Button |
1 |
| Door Contact Input |
1 |
| Tamper |
1 |
| Power Interface |
2-pin |
General
| Features |
Specifications |
| Power Supply |
12 VDC, 2 A |
| Power Consumption |
≤ 10 W |
| Power Adapter |
Not included |
| Working Temperature |
-10°C to 50°C |
| Working Humidity |
0 to 90% RH, non-condensing |
| Dimensions |
118 × 118 × 20 mm |
| Weight |
0.5 kg |
| Installation |
Surface mount, optional base stand |
| Application Environment |
Indoor |
| Languages |
English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil) |
| Platform |
Hik-ProConnect and HikCentral Professional |
Note: DS-K1T642MW supports face recognition and 13.56 MHz Mifare 1 card authentication with Wi-Fi connectivity.
Important: DS-K1T642MW does not support fingerprint recognition. The power adapter is not included.
