| Features |
Specifications |
| Product Type |
Face Recognition Module for Turnstile |
| Application |
Turnstile and Barrier Access Control |
| Display |
7-inch LCD Touch Screen |
| Camera |
2MP Wide-Angle Dual Lens |
| Face Capacity |
50,000 faces |
| Event Capacity |
100,000 events |
| Face Recognition Distance |
0.3–3m |
| Recognition Duration |
<0.2s/User |
| Recognition Accuracy |
≥99% |
| QR Code Recognition |
Supported |
| Wi-Fi |
Supported |
Face Recognition & Display
| Features |
Specifications |
| Screen Size |
7-inch |
| Display Type |
LCD |
| Operation Method |
Capacitive Touch Screen |
| Camera |
2MP Dual Lens |
| Field of View |
HFOV 87°, VFOV 46° |
| Face Recognition Distance |
0.3–3m |
| Face Recognition Duration |
<0.2s/User |
| Face Recognition Accuracy |
≥99% |
| Face Capacity |
50,000 |
| Face Anti-Spoofing |
Supported |
| Supplement Light |
Adjustable Brightness |
Authentication & Attendance
| Features |
Specifications |
| Authentication |
1:N Face Matching and Multiple Authentication Modes |
| QR Code Recognition |
Supported; QR code image larger than 6 × 6cm |
| External Card Reader |
Supported via RS-485 |
| Wiegand Card Reader |
Supported |
| Attendance Status |
Check In, Check Out, Break In, Break Out, Overtime In, Overtime Out |
| Attendance Status Count |
6 statuses |
| Event Capacity |
100,000 |
| Voice Prompt |
Supported |
Network & Communication
| Features |
Specifications |
| Network Interface |
1 × RJ45 10/100/1000M Self-Adaptive |
| Wi-Fi |
2.4GHz, IEEE 802.11b/g/n |
| RS-485 |
1 × RS-485, Half Duplex, Hikvision |
| Wiegand |
1 × Wiegand, Hik 26bit/Hik 34bit |
| USB |
1 × USB |
| Communication Protocol |
TCP/IP, SIP, RTSP, ISAPI, ISUP 5.0 |
| Platform |
Hik-ProConnect and HikCentral Professional |
| Remote Live View |
Supported via RTSP |
Interface & Access Control
| Features |
Specifications |
| Lock Control |
1 |
| Door Contact Input |
1 |
| Alarm Input |
2 |
| Alarm Output |
1 |
| RS-485 |
1 |
| Wiegand |
1 |
| Turnstile Interface |
Built-in I/O and Wiegand output for third-party turnstiles |
| Two-Way Audio |
Supported with client software, indoor station and master station |
General
| Features |
Specifications |
| Power Supply |
12VDC, 2A |
| Working Temperature |
-30°C to +60°C |
| Working Humidity |
10–90%, Non-Condensing |
| Indoor Use |
Supported |
| Languages |
English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil) |
| Time Synchronization |
NTP, Manual and Automatic Synchronization |
| Watchdog |
Supported |

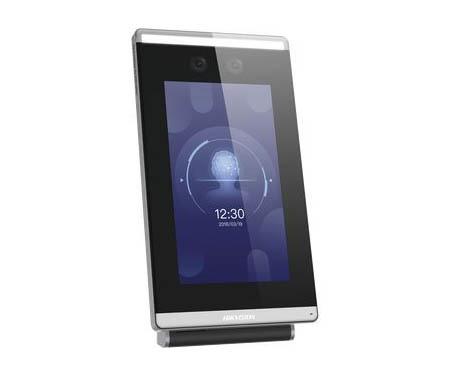

Note: The DS-K5671-ZH is designed for face recognition access control and attendance applications with turnstile and barrier systems.
Important: The device is intended for indoor use and can communicate with third-party turnstiles through I/O or Wiegand interfaces.
