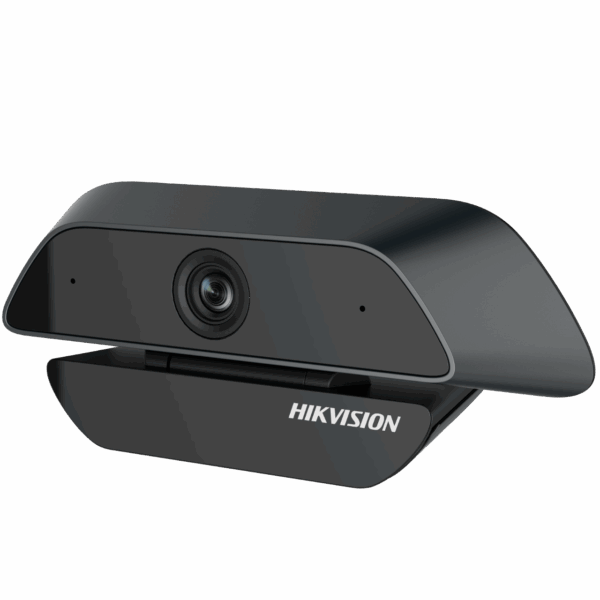

Camera

• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Frame Rate

  MJPG：

  1920 × 1080 @ 30 fps/25 fps

  1280 × 960 @ 30 fps/25 fps

  1280 × 720 @ 30 fps/25 fps

  640 × 480 @ 30 fps(default)/25 fps

  YUV2：

  1280 × 960 @ 7 fps

  1280 × 720 @ 10 fps

  640 × 480 @ 25 fps

• Resolution1920 (H) × 1080 (V)
• Min. Illumination0.1 Lux @ (F1.2, AGC ON)
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens3.6 mm fixed focal lens
• Field Of Viewhorizontal FOV: 81°, vertical FOV: 50°, diagonal FOV: 90°
• Lens MountM8
• Day & Night24/7 Color Imaging
• Angle Adjustmentpan: 0°; tilt: -10° to 30°; ratation: 0°
• Digital ZoomYes
• Cable Length2 m
• Depth Of Field0.4 m to ∞

Audio

• Audio Sampling Rate8 kHz/16 kHz (default)

Interface

• Video OutputUSB 2.0
• Audio InBuilt-in mic
• Operating SystemWindows XP/7/10, Android, Linux

General

• Operating Conditions-10°C to 40°C, Humidity: 90% or less (non-condensing)
• Power SupplyDC 5V ± 5% (USB)
• ConsumptionMax. 1.0 W
• Dimension118 mm × 46.8 mm × 54.9 mm (4.65″ × 1.84″ × 2.16″)
• Approx. 140 g (0.31 lb)

Accessory

• Packing List

  Camera × 1

  Quick Start Guide × 1
