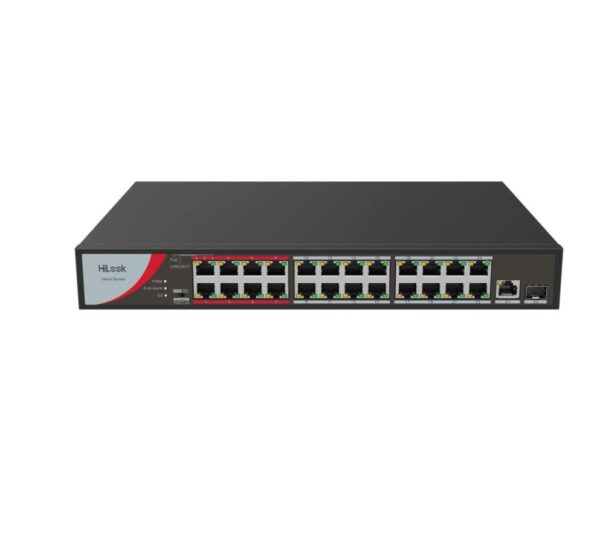

NS-0318P-130(B)

• Port Number24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding ModeStore-and-forward switching
• Working ModeStandard mode (default); Extend mode
• High Priority PortsPorts 1 to 8
• Ports For Long-Distance TransmissionPorts 17 to 24
• MAC Address Table4 K
• Switching Capacity8.8 Gbps
• Packet Forwarding Rate6.547 Mpps
• Internal Cache2.75 Mbits
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power PinPorts for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply. Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
• PoE PortPorts 1 to 24
• Max. Port Power30 W
• PoE Power Budget230 W
• Max. Power Consumption250 W
• ShellMetal material
• Gross Weight3.33 kg (7.34 lb)
• Net Weight2.55 kg (5.6 lb)
• Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Storage Humidity5% to 95% (no condensation)
• Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
• Power Consumption In Idle20 W
