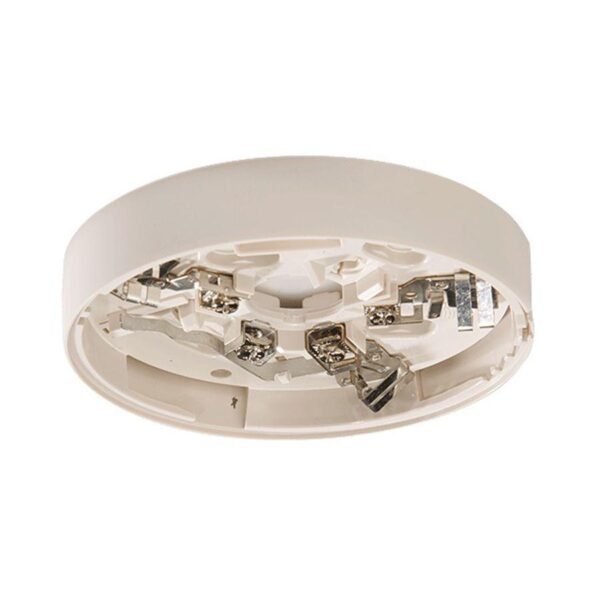

Honeywell B401

Honeywell รุ่น B401

Plug-In Detector Base

คุณสมบัติ

  • B401 เป็นฐานเครื่องตรวจจับปลั๊กอินของ Honeywell
  • สำหรับแผงควบคุมสัญญาณเตือนไฟไหม้ Morley Lite (FACP)
  • มีไว้สำหรับใช้ในระบบ 2 สาย
  • ขั้วต่อสกรูมีไว้สำหรับการเชื่อมต่อไฟฟ้าและตัวแจ้งเตือนระยะไกล
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications

Base Diameter: 10.2 cm (4.0 inches)
Base Height: 2.0 cm (0.8 inches)
Weight: 152 g (0.34 lb.)
Mounting:

  • 50 mm box
  • 60 mm box

Operating Temperature Range: –10° to +60°C (14° to 140°F)
Operating Humidity Range: 10% to 93% Relative Humidity

Electrical Ratings

Base And Smoke Detector Base And Heat Detector
System Voltage:   12/24 VDC    24 VDC
Maximum Ripple Voltage:  4 Volts peak to peak 4 Volts peak to peak
Start-up Capacitance:  0.02 µF Maximum  0.02 µF Maximum
Standby Ratings:*  8.5 VDC Minimum

35 VDC Maximum

120 µA Maximum

 15 VDC Minimum

35 VDC Maximum

100 µA Maximum

Alarm Ratings:  4.2 VDC Minimum at 10 mA**

6.6 VDC Maximum at 100 mA**

  4.2 VDC Minimum at 10 mA**

6.6 VDC Maximum at 100 mA**

Reset Voltage: 2.5 VDC Minimum 2.5 VDC Minimum
Reset Time: 0.3 Seconds Maximum 0.3 Seconds Maximum
Start-up Time: 34 Seconds Maximum 34 Seconds Maximum

**Alarm current MUST be limited to 100 mA maximum (130 mA for models 1151 and 2151) by the control panel.
If used, the RA400Z Remote Annunciator operates within the specified detector alarm currents.
