| Features |
Description |
| Device Type |
6-Port Gigabit Industrial Easy Managed Switch |
| Network Ports |
4 × 10/100/1000 Mbps RJ45 Ports |
| Combo Port |
1 × Gigabit RJ45/SFP Combo Slot |
| SFP Port |
1 × Gigabit SFP Slot |
| Switching Capacity |
12 Gbps |
| Packet Forwarding Rate |
8.93 Mpps |
| MAC Address Table |
8K |
| Management |
Web-Based GUI, Omada App and Centralized Omada Cloud Management |
| Industrial Protection |
6 kV Lightning Protection, Overload Protection, Overvoltage Protection and Reverse Polarity Protection |
| Power Input |
9.6–60 VDC Dual Redundant Power Input |
| Operating Temperature |
-40°C to +75°C |
| Enclosure |
IP40 Aluminum Casing |
| Application |
Industrial Automation, CCTV, Energy Systems, Smart Buildings and Industrial Ethernet Networks |
| Interface |
4 × 10/100/1000 Mbps RJ45 + 1 × Gigabit RJ45/SFP Combo + 1 × Gigabit SFP |
| Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z and IEEE 802.3x |
| Auto Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Switching Capacity |
12 Gbps |
| Packet Forwarding Rate |
8.93 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4 Mbit |
| Jumbo Frame |
15 KB |
| Transmission Method |
Store-and-Forward |
| VLAN |
MTU VLAN, Port-Based VLAN and 802.1Q Tag VLAN, Up to 32 VLAN Groups |
| Spanning Tree |
STP and RSTP |
| Link Aggregation |
Static Link Aggregation, Up to 2 Groups with Up to 4 Ports per Group |
| Multicast |
IGMP Snooping v1/v2/v3 with Fast Leave |
| QoS |
802.1p/DSCP Priority, 8 Priority Queues, WRR, Bandwidth Control and Storm Control |
| Power Input |
9.6–60 VDC |
| Power Redundancy |
1+1 Dual Redundant DC Power Input |
| Surge Protection |
±6 kV Common Mode for Ethernet Ports; ±4 kV Common Mode for DC Power Input Ports |
| Fault Alarm |
Real-Time Fault Alarm for Port Disconnection and Abnormal Power Input |
| Fan |
Fanless |
| SMART FEATURES |
| 6-Port Gigabit |
Provides 4 Gigabit RJ45 Ports, 1 Gigabit RJ45/SFP Combo Port and 1 Gigabit SFP Port for Flexible Copper and Fiber Connectivity |
| Industrial-Grade Protection |
Supports 6 kV Lightning Protection, Overload Protection, Overvoltage Protection and Reverse Polarity Protection for Harsh Industrial Environments |
| Dual Redundant Power |
Supports 9.6–60 VDC 1+1 Redundant Power Input to Maintain Network Operation if One Power Source Fails |
| Fiber Connectivity |
Provides One Dedicated Gigabit SFP Slot and One Gigabit RJ45/SFP Combo Slot for Fiber Uplinks and Long-Distance Industrial Networking |
| VLAN |
Supports MTU VLAN, Port-Based VLAN and IEEE 802.1Q Tag VLAN for Network Segmentation and Traffic Isolation |
| STP/RSTP |
Supports STP and RSTP for Network Loop Prevention and Redundant Network Topologies |
| QoS |
Supports 802.1p/DSCP Priority, 8 Priority Queues, WRR, Bandwidth Control and Storm Control |
| Omada Management |
Supports Centralized Management Through Web GUI, Omada App and Omada Cloud-Based, Hardware or Software Controller |
| Fanless Design |
Fanless Industrial Construction Provides Silent Operation and Improved Reliability in Dust-Prone Environments |
| GENERAL |
| Switch Type |
Industrial Easy Managed Gigabit Switch |
| Network Ports |
4 × 10/100/1000 Mbps RJ45 |
| Combo Port |
1 × Gigabit RJ45/SFP Combo |
| SFP Port |
1 × Gigabit SFP |
| PoE |
Not Supported |
| Installation Method |
DIN-Rail Mount / Wall Mount |
| Enclosure |
IP40 Aluminum Casing |
| Power Input |
9.6–60 VDC |
| Power Redundancy |
1+1 Redundant DC Power Input |
| Dimensions |
129 × 95 × 45 mm |
| Operating Temperature |
-40°C to +75°C |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
5% to 95% RH, Non-Condensing |
| Storage Humidity |
5% to 95% RH, Non-Condensing |
| Mounting |
DIN-Rail / Wall Mount |
| Certification |
FCC, CE and RoHS |

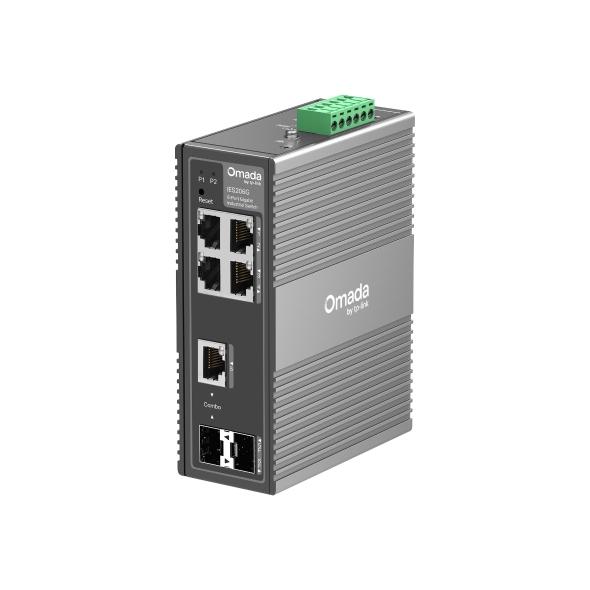

Note: The TP-Link IES206G is a 6-port Gigabit Industrial Easy Managed Switch featuring 4 × Gigabit RJ45 ports, 1 × Gigabit RJ45/SFP Combo slot and 1 × Gigabit SFP slot. It provides 12 Gbps switching capacity, 8.93 Mpps packet forwarding performance, VLAN, QoS, STP/RSTP and centralized Omada management, making it suitable for industrial Ethernet, CCTV, energy and smart building networks.
Important: The TP-Link IES206G supports 9.6–60 VDC 1+1 redundant power input, ±6 kV Ethernet surge protection, ±4 kV DC power surge protection, -40°C to +75°C operating temperature and IP40 aluminum housing. It supports DIN-rail and wall mounting and uses a fanless design for reliable operation in industrial environments.
