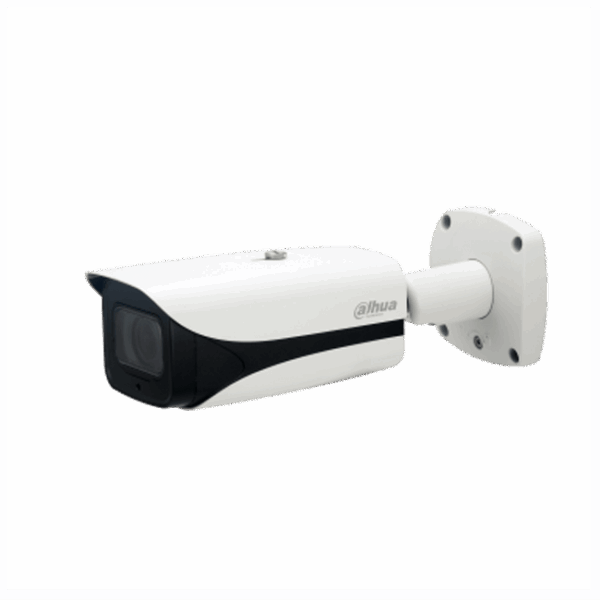

Dahua รุ่น IPC-HFW5241E-ZE

2MP Pro AI IR Vari-focal Bullet Network Camera

  • 1/2.8” 2Megapixel โปรเกรสซีฟสแกน STARVIS™ CMOS
  • การเข้ารหัสสามสตรีม H.265 & H.264
  • 25/30 fps@1080P (1920 × 1080)
  • WDR (120 dB), กลางวัน/กลางคืน (ICR), 3D DNR, AWB, AGC, BLC
  • การตรวจสอบเครือข่ายหลายรายการ: โปรแกรมดูเว็บ, CMS (DSS/PSS) & DMSS
  • เลนส์แบบใช้มอเตอร์ 2.7 มม.–13.5 มม.
  • 2/1 สัญญาณเตือนเข้า/ออก 1/1 เสียงเข้า/ออก
  • สูงสุด IR LEDs ความยาว 50 m
  • หน่วยความจำ Micro SD, IP67, IK10
หมวดหมู่: , , , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Camera
Image Sensor 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
Effective Pixels 1920 (H) × 1080 (V)
RAM/ROM 512 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
S/N Ratio > 56 dB
Minimum Illumination 0.002 Lux@F1.5
Illumination Distance Distance up to 50 m (164 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 4(IR LED)
Lens
Lens Type Motorized vari-focal
Mount Type Board-in
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Angle of View H: 109°–30°, V: 57°–17°
Aperture Type Auto
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 44m(144ft) 18m(59ft) 9m(30ft) 4m(13ft)
T 146m(479ft) 58m(190ft) 29m(95ft) 15m(49ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan: 0˚–360˚, Tilt: 0˚–90˚, Rotation: 0˚–360˚
Artificial Intelligence
Face Detection Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo;three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
Face Attributes Support 6 kinds of face attributes extraction: Age, Gender,Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard
Perimeter Protection Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection
of vehicle and human); loitering detection; people gathering; parking detection
People Counting Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection
General Intelligence
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
General Intelligence Object Abandoned/Missing
Heat Map Yes
Video
Compression H.265,H.264,H.264B,H.264H,
MJPEG (only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Streaming Capability 3 Streams ( Customize up to 6) 10 Viewing Profiles
Resolution (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Frame Rate Main Stream: 1080P (1 fps–25/30 fps)
Sub Stream: D1 (1 fps–25/30 fps)
Third Stream: 1080P (1 fps–6 fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–7424 Kbps


Day/Night Auto(ICR)/Color/B/W
BLC Mode BLC/HLC/WDR (120 dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off/On (4 Zone, Rectangle)
Region of Interest Off/On (4 Zone)
Electronic Image Stabilization (EIS) Yes
Smart IR Yes
Defog Yes
Flip 0°/90°/180°/270°
Mirror Off/On
Privacy Masking Off/On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726, G.723
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
Streaming Method Unicast/Multicast
Max. User Access 20 Users
Edge Storage NAS;FTP;SFTP;Dahua Cloud
Micro SD card 256 GB
Web Viewer IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)
Management Software Smart PSS, DSS, DMSS
Smart Phone iOS, Android
Certifications
Certifications CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Interface
Audio Interface 1/1 channel In/Out
BNC Output Yes
Alarm 2 channel In: 5mA 5V DC

1 channel Out: 300mA 12V DC
Electrical
Power Supply DC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption <10.3W
Environmental
Operating Conditions -30° C to +60° C (-22° F to +140° F)/Less than 95% RH
Storage Conditions -30° C to +60° C (-22° F to +140° F)
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal, plastic
Dimensions 273.2 mm × 95.0 mm × 95.0 mm (10.76” × 3.74” × 3.74”)
Net Weight 1.11 kg (2.44 lb)
Gross Weight 1.51 kg (3.33 lb)
Adjustable sunlight shied Yes
