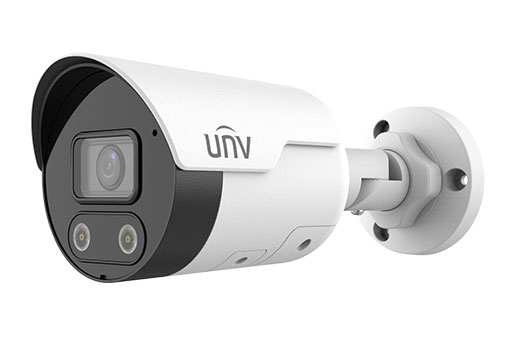

IPC2122LE-ADF28KMC-WL
Uniview รุ่น IPC2122LE-ADF28KMC-WL
2MP HD ColorHunter Mini IR Fixed Bullet Network Camera
- ภาพคุณภาพสูงพร้อมเซ็นเซอร์ CMOS 1/2.8″ 2MP
- 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps;
- อัลตร้า 265, H.265, H.264, MJPEG
- เทคโนโลยี WDR จริง 120dB ช่วยให้ได้ภาพที่ชัดเจนในฉากที่มีแสงจ้า
- รองรับโหมดทางเดิน 9:16
- ไมค์และลำโพงในตัว
- IR อัจฉริยะ ระยะ IR สูงสุด 30 ม. (98 ฟุต)
- แสงสีขาว ระยะแสงสีขาวสูงสุด 30 ม. (98 ฟุต)
- รองรับการ์ด Micro SD 128 G
- การป้องกัน IP67
- รองรับแหล่งจ่ายไฟ PoE
- 3-Axis
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
| IPC2122LE-ADF28KMC-WL | IPC2122LE-ADF40KMC-WL | |||||||
| Camera | ||||||||
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 43.4 | 17.4 | 8.7 | 4.3 | ||||
| 4.0 | 62.1 | 24.8 | 12.4 | 6.2 | ||||
| Angle Of View (H) | 106.7° | 87.5° | ||||||
| Angle Of View (V) | 57.1° | 46.3° | ||||||
| Angle Of View (O) | 115.7° | 92.4° | ||||||
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.002Lux ( F1.6, AGC ON) 0Lux with light |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| White Light Range | Up to 30m (98ft) white light range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||
| Video Bit Rate | 128 Kbps~6 Mbps | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Supported | |||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Audio | ||||||||
| Audio Compression | G.711 | |||||||
| Two-way Audio | Supported | |||||||
| Suppression | Supported | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 128GB | |||||||
| Network Storage | ANR, NAS(NFS) | |||||||
| Smart | ||||||||
| Behavior Detection | Cross line, intrusion(based on human body detection) | |||||||
| motion detection, tampering alarm, audio detection | ||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Client | EZStation EZView EZLive |
|||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
| Interface | ||||||||
| Network | 10/100M Base-TX Ethernet | |||||||
| Built-in Mic | Supported | |||||||
| Built-in Speaker | Supported | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 9.0W | ||||||||
| Dimensions(L × W × H) | 191×75×74mm (7.5”×2.9”×2.9”) | |||||||
| Net Weight | 0.41kg (0.90lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 4KV | |||||||
| Ingress Protection | IP67 | |||||||
| Reset Button | N/A | |||||||
