| Features |
Description |
| Device Type |

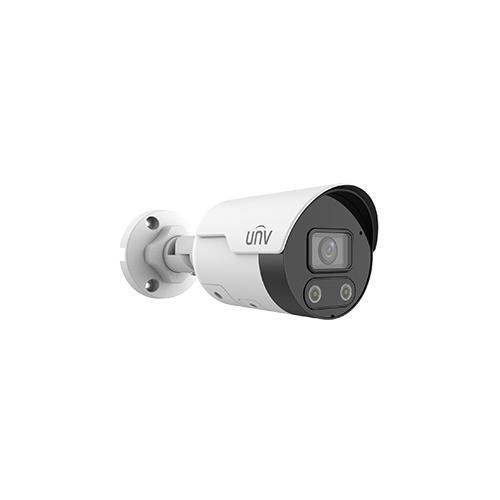

2MP ColorHunter Mini IR Fixed Bullet Network Camera |
| Brand / Series |
Uniview (UNV) / Easy Series (ColorHunter & Active Deterrence) |
| Image Sensor |
1/2.8″ Progressive Scan 2.0 Megapixel CMOS |
| Maximum Resolution |
1080P (1920 × 1080) @ 30/25 fps |
| Lens Specifications |
4.0 mm Fixed Focal Lens (F1.6) |
| Field of View |
Horizontal: 87.5° | Vertical: 46.3° | Diagonal: 92.4° |
| Minimum Illumination |
Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with white/IR light active |
| Dual Illumination |
Smart IR and Warm White Light (up to 30 meters / 98 feet range) |
| Protection Rating |
IP67 Weatherproof Metal Housing |
| VIDEO & AUDIO PERFORMANCE |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Wide Dynamic Range |
120 dB True WDR technology for high-contrast lighting environments |
| Corridor Mode |
Supports 9:16 vertical corridor viewing format |
| Audio Capabilities |
Built-in Microphone and Speaker supporting Two-Way Audio communication |
| SMART FEATURES & STORAGE |
| Smart Detection |
Cross line detection, intrusion detection (based on human body classification), motion detection, and audio detection |
| Edge Storage |
MicroSD card slot supporting up to 128GB / 512GB (depending on batch/firmware version) |
| Network Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Integration Support |
ONVIF (Profile S, Profile G, Profile T), API |
| POWER & PHYSICAL SPECIFICATIONS |
| Power Supply |
DC 12V ± 25% or Power over Ethernet (PoE IEEE 802.3af) |
| Power Consumption |
Max 9.0 W |
| Network Interface |
1 × RJ45 10M/100M Base-TX Ethernet port |
| Dimensions & Weight |
191 × 75 × 74 mm (7.5″ × 2.9″ × 2.9″) | Approx. 0.41 kg (0.90 lbs) |
| Operating Environment |
-30°C to 60°C (-22°F to 140°F); Humidity: ≤95% RH (non-condensing) |
Note: The Uniview IPC2122LE-ADF40KMC-WL is an advanced 2MP fixed bullet network camera featuring Uniview’s ColorHunter technology paired with dual infrared and warm light illuminators. It delivers crystal-clear Full HD video streams in ultra-low light conditions, incorporates built-in two-way audio (mic and speaker), and supports smart human-body-based perimeter detection for reliable security monitoring.
Important: The camera features a 4.0mm fixed lens delivering an 87.5° horizontal field of view alongside a 120dB true WDR sensor. It provides dual illumination up to 30 meters for both IR and warm white light, supports local edge storage via MicroSD up to 128GB/512GB, and operates on either 12V DC or PoE (802.3af) inside an IP67-rated metal enclosure designed for extreme environments from -30°C to 60°C.
