| Features |
Description |
| Product Type |

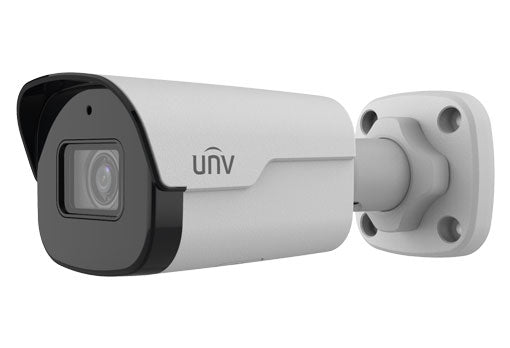

5MP LightHunter Fixed IR Bullet Network Camera |
| Camera Type |
Bullet Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
5MP (2880 × 1620) |
| Lens |
4.0 mm Fixed Lens |
| WDR |
120 dB True WDR |
| IR Range |
Up to 40 m |
| Smart Detection |
Smart Intrusion Prevention / People Flow Counting / Crowd Density Monitoring |
| Audio |
Built-in Microphone |
| Storage |
MicroSD up to 256GB |
| PoE |
IEEE 802.3af |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.7″ 5.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution |
2880 × 1620 |
| Minimum Illumination |
Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1/1 to 1/100000 s |
| Adjustment Angle |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| WDR |
120 dB True WDR |
| S/N Ratio |
>52 dB |
| Digital Noise Reduction |
2D / 3D DNR |
| Defog |
Digital Defog |
| LENS |
| Lens Type |
Fixed Lens |
| Focal Length |
4.0 mm |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
| Horizontal FOV |
91.2° |
| Vertical FOV |
43.7° |
| Diagonal FOV |
95.3° |
| DORI |
| 4.0 mm |
Detect: 90.0 m, Observe: 36.0 m, Recognize: 18.0 m, Identify: 9.0 m |
| ILLUMINATOR |
| IR Type |
Smart IR |
| IR Range |
Up to 40 m |
| IR Wavelength |
850 nm |
| IR Control |
Auto / Manual |
| VIDEO |
| Main Stream |
5MP (2880 × 1620) up to 30 fps |
| 4MP |
2560 × 1440 up to 30 fps |
| 3MP |
2304 × 1296 up to 30 fps |
| 1080P |
1920 × 1080 up to 30 fps |
| Sub-Stream |
720P / D1 / 640 × 360 up to 30 fps |
| Third Stream |
D1 / 640 × 360 / 2CIF / CIF up to 30 fps |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| H.264 Profile |
Baseline / Main / High Profile |
| Video Bit Rate |
128 Kbps–16 Mbps |
| Video Streams |
Triple Streams |
| U-Code |
Supported |
| 9:16 Corridor Mode |
Supported |
| ROI |
Up to 8 Areas |
| Privacy Mask |
Up to 4 Areas |
| OSD |
Up to 8 OSDs |
| Motion Detection |
Up to 4 Areas |
| SMART FEATURES |
| Smart Intrusion Prevention |
Supported |
| Cross Line Detection |
Supported |
| Intrusion Detection |
Supported |
| Enter Area Detection |
Supported |
| Leave Area Detection |
Supported |
| Target Classification |
Human / Motor Vehicle / Non-Motor Vehicle |
| People Flow Counting |
Supported |
| Crowd Density Monitoring |
Supported |
| AUDIO |
| Built-in Microphone |
Supported |
| Audio Input |
N/A |
| Audio Output |
N/A |
| Audio Compression |
G.711 |
| Audio Sampling Rate |
8 kHz |
| Noise Suppression |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Base-TX Ethernet |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF Profile S / G / T, API |
| Client Software |
EZStation / EZView / EZLive |
| Web Browser |
Chrome / Firefox / Edge / Safari |
| STORAGE |
| MicroSD Card |
Up to 256GB |
| Storage Type |
MicroSD / MicroSDHC / MicroSDXC |
| Network Storage |
ANR / NAS (NFS) |
| Edge Storage |
Supported |
| INTERFACE |
| Ethernet |
1 × RJ45 10/100M Base-TX |
| Built-in Microphone |
Supported |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Video Output |
N/A |
| Reset Button |
Supported |
| POE & POWER |
| PoE Standard |
IEEE 802.3af |
| Power Supply |
DC 12V ±25% / PoE |
| Maximum Power Consumption |
5.0W |
| Power Interface |
Ø5.5 mm Coaxial Power Plug |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Surge Protection |
2 kV |
| Housing Material |
Metal |
| Dimensions |
155.9 × 63.1 × 62.7 mm |
| Net Weight |
0.425 kg |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Temperature |
-30°C to 60°C |
Note: The Uniview IPC2125SB-ADF40KM-I0 is a 5MP LightHunter Fixed IR Bullet Network Camera featuring a 1/2.7″ Progressive Scan CMOS sensor and 2880 × 1620 resolution. It is equipped with a 4.0 mm fixed lens with F1.6 aperture, 120 dB True WDR and Smart IR up to 40 m. The camera supports Smart Intrusion Prevention with human, motor vehicle and non-motor vehicle classification, People Flow Counting, Crowd Density Monitoring and 9:16 Corridor Mode. It also features a built-in microphone, MicroSD storage, IEEE 802.3af PoE and IP67 protection.
Important: The Uniview IPC2125SB-ADF40KM-I0 is a 5MP LightHunter Fixed IR Bullet Network Camera featuring a 4.0 mm fixed lens, 120 dB True WDR and Smart IR up to 40 m. It supports Smart Intrusion Prevention, Human/Vehicle/Non-Motor Vehicle Classification, People Flow Counting and Crowd Density Monitoring. The camera also provides built-in microphone, MicroSD storage up to 256GB, IEEE 802.3af PoE and IP67 protection.
