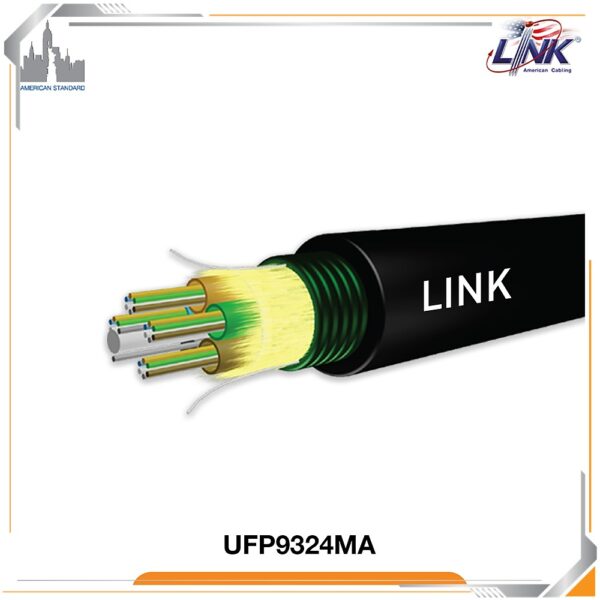

24 Core OS2 Armored Outdoor/Indoor Fiber Optic Cable

  • 24 Core OS2 9/125μm Singlemode armored fiber optic cable (Multi-Tube)
  • Outdoor/Indoor steel armored design with FR-LSZH and UV-resistant PE jacket
  • Supports duct, aerial and direct burial installations
  • Complies with ANSI/TIA-568.3, IEC 60794 and ITU-T G.652D standards
  • Supports 10G, 40G and 100G Ethernet, FTTx, CATV and CCTV backbone applications
  • Ideal for campus backbone, inter-building and long-distance enterprise fiber optic networks
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9324MA

Features Description
Device Type Outdoor / Indoor Armored Fiber Optic Cable
Fiber Type OS2 9/125μm Single-Mode Fiber
Core Count 24 Core
Cable Construction Steel Armored, Multi-Tube
Jacket Material UV-Resistant Black PE with FR-LSZH Outer Sheath
Installation Indoor / Outdoor, Duct, Lash Aerial and Direct Burial
Armored Protection Corrugated Steel Tape for Rodent and Mechanical Protection
Water Protection Waterproof Compound, Water-Blocking Tape and E-Glass Yarn
Cable Length 4,000 Meters per Drum (Available by Meter)
Application Campus Backbone, Building Backbone, Direct Burial, FTTx, CCTV and Enterprise Networks
Fiber Standard ITU-T G.652D OS2 Single-Mode
Fiber Diameter 9/125μm
Armor Type Corrugated Steel Tape
Flame Rating FR-LSZH (Flame Retardant Low Smoke Zero Halogen)
Installation Type Indoor / Outdoor, Duct, Lash Aerial and Direct Burial
Standards ANSI/TIA-568.3-E, ISO/IEC 11801:2017, IEC 60794-1-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, ITU-T G.652D, RoHS
Application 10G, 40G, 100G Ethernet, Fiber Channel, FTTx, CATV, CCTV and Backbone Networks
SMART FEATURES
Steel Armored Design Provides Excellent Protection Against Rodents, Crushing and Mechanical Damage
Multi-Tube Construction Improves Fiber Organization and Mechanical Protection for High Fiber Count Applications
Direct Burial Support Suitable for Underground Installation Without Additional Conduit
Water Blocking Filled with Waterproof Compound and Water-Blocking Tape to Prevent Moisture Penetration
FR-LSZH Jacket Reduces Flame Spread, Smoke and Toxic Gas Emissions During Fire
GENERAL
Fiber Count 24 Core
Cable Diameter Approximately 11.0mm
Cable Weight Approximately 120kg/km
Maximum Tensile Load 2,700N (Installation), 1,500N (Operation)
Installation / Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +75°C
Packing 4,000m per Drum (Available by Meter)
Warranty 30 Years

Note: The LINK UFC9324MA is a 24-core OS2 9/125μm single-mode armored fiber optic cable designed for indoor and outdoor installations, including duct, aerial, and direct burial applications. It features a multi-tube construction with corrugated steel tape armor, FR-LSZH outer sheath, waterproof compound, and UV-resistant PE jacket, making it ideal for campus backbone, inter-building links, FTTx, CCTV, and enterprise networking.

Important: The LINK UFC9324MA is a 24-core OS2 armored multi-tube fiber optic cable featuring ITU-T G.652D single-mode fiber, corrugated steel tape armor, direct burial support, FR-LSZH flame-retardant jacket, waterproof construction, UV-resistant PE sheath, and compliance with ANSI/TIA, ISO/IEC, IEC, Telcordia, and RoHS standards. It is optimized for 10G, 40G, and 100G backbone networks, providing superior protection for outdoor and underground fiber deployments.
