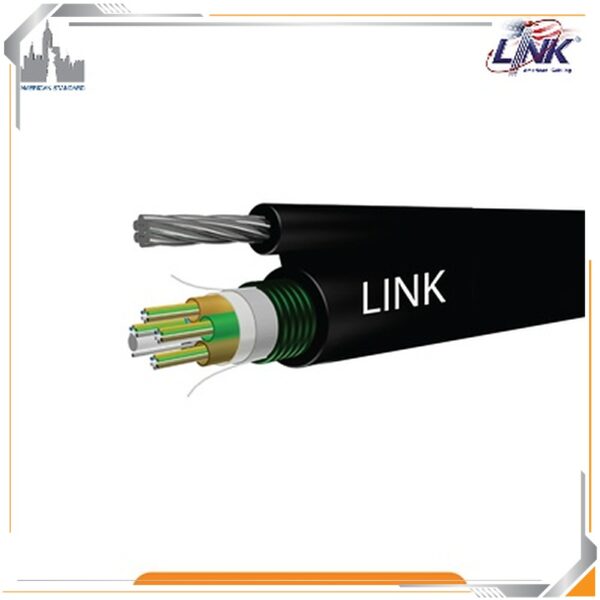

60 Core OS2 Armored Multi-Tube Figure 8 Fiber Optic Cable (Single Jacket)

  • 60 Core OS2 9/125μm Singlemode fiber optic cable with Multi-Tube Figure 8 design
  • Steel Armored construction with drop wire for self-supporting aerial installation
  • Single Jacket HDPE outer sheath with UV resistance for outdoor environments
  • Supports aerial installation on poles, buildings and inter-building connections
  • Complies with ANSI/TIA-568.3, IEC 60794 and ITU-T G.652D standards
  • Ideal for FTTx, backbone networks, CCTV and long-distance fiber optic links
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9860MA

Features Description
Device Type F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable
Fiber Type OS2 9/125μm Single-Mode Fiber
Core Count 60 Core
Cable Construction FIG.8, Multi-Tube, Armored, Single Jacket
Jacket Material UV-Resistant Black HDPE Outer Jacket
Installation Outdoor Aerial Pole Installation, Building Entrance and Backbone Network
Armored Protection Steel Armored Layer Provides Anti-Rodent and Mechanical Protection
Messenger Wire Built-in Galvanized Steel Messenger Wire for Self-Support Aerial Installation
Cable Length 4,000 Meters per Drum
Application Backbone Network, Data Center, FTTx, CCTV, Inter-Building Link and Enterprise Fiber Infrastructure
Fiber Standard ITU-T G.652D OS2 Single-Mode
Fiber Diameter 9/125μm
Fiber Type Single-Mode Fiber (SMF)
Cable Structure FIG.8 Multi-Tube Armored
Armor Type Steel Armored
Jacket Type Single HDPE Jacket
Messenger Wire Galvanized Steel Messenger Wire
Installation Type Aerial, Outdoor and Building Installation
Standards ISO/IEC 11801, ANSI/TIA-568.3, Telcordia GR-20-CORE, ANSI/ICEA 640, ITU-T G.652D, IEC 60793, IEC 60794-1-2, EN 50173-1, RoHS
Application 10G, 40G, 100G Ethernet, Fiber Channel, CCTV, FTTx and Long-Distance Backbone Network
SMART FEATURES
FIG.8 Self Support Design Integrated Messenger Wire Enables Aerial Installation Without Additional Support Cable
Multi-Tube Structure Loose Tube Design Protects Fiber Core and Supports High Fiber Density Network Applications
Steel Armored Protection Provides Anti-Rodent Protection and Resistance Against Crushing and External Impact
OS2 Single-Mode Fiber Supports Long-Distance High-Speed Transmission with Low Optical Loss
High Fiber Capacity 60 Core Fiber Design Suitable for Large Backbone Network Deployment
GENERAL
Fiber Count 60 Core
Core / Cladding Size 9/125μm Single-Mode Fiber
Cable Type F.O. FIG.8 Multi-Tube Armored Single Jacket
Outer Jacket Color Black
Cable Length 4,000m per Drum
Installation / Operating Temperature -40°C to +70°C
Packing 4,000m per Drum
Warranty 30 Years

Note: The LINK UFC9860MA is a 60-core OS2 9/125μm single-mode fiber optic cable featuring FIG.8 multi-tube armored construction with a single HDPE jacket. It integrates a messenger wire for self-support aerial installation and uses steel armor protection to improve resistance against rodents, impact, and harsh outdoor environments. The cable is suitable for backbone networks, FTTx, CCTV, inter-building links, and enterprise fiber infrastructure.

Important: The LINK UFC9860MA is designed for high-capacity outdoor fiber deployment with 60-core OS2 single-mode fiber, FIG.8 self-support structure, multi-tube design, and armored protection. It supports long-distance high-speed transmission for enterprise backbone networks while maintaining durability and easy aerial installation.
