| Features |
Description |
| Device Type |
Indoor Multipair Telephone Cable (TPEV / CAT 3) |
| Brand / Series |
LINK (Interlink) / Telecommunication Cable Series |
| Standard / Category |
Category 3 (CAT 3) / TPEV Voice Grade Unshielded Twisted Pair (UTP) |
| Conductor Material |
Solid Bare Copper, 22 AWG (0.65 mm Diameter) |
| Pair Count |
10 Pairs (20 Cores) |
| Jacket Material |
Flame-Retardant PVC (Gray / Indoor Grade) |
| Application |
Indoor telecommunication backbone, PBX distribution frames, MDF/IDF cross-connects, and multi-line voice networks |
| Performance Standard |
Meets ANSI/TIA-568-C.2, ISO/IEC 11801, and ITU-T standards for voice communication |
| Core Construction |
Industry-standard color-coded insulation with high-grade plastic wrapping tape over the cable core |
| Environment |
Designed strictly for indoor wiring, riser shafts, cable trays, conduits, or wiring duct installations |
| Warranty |
30-Year Standard Manufacturer Warranty |
| SMART FEATURES |
| Thicker 22 AWG Copper |
Features 0.65 mm solid bare copper conductors that offer lower DC resistance, making it ideal for longer-distance indoor runs with minimal signal degradation |
| Indoor PVC Jacket |
Encased in a smooth, durable, flame-retardant PVC jacket tailored to comply with indoor building codes and safety regulations |
| 10-Pair Mid-Low Capacity |
Supports up to 10 dedicated voice or analog signal lines (20 cores) in a compact bundle, perfect for small-to-medium office branch distributions |
| Organized Color Coding |
Features industry-standard color-coded pairs allowing technicians to quickly identify, sort, and terminate individual lines on punch-down blocks |
| GENERAL |
| Model Code |
UL-1410 |
| Packaging |
Supplied in 305 Meters / Roll (Wooden Reel or Pull Box) |

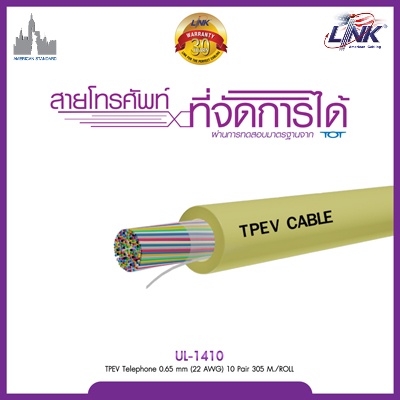

Note: The LINK UL-1410 is an indoor-rated 10-pair TPEV telephone cable utilizing heavy-duty 22 AWG (0.65 mm) solid copper conductors. Engineered for structured voice networks and enterprise PBX backbones, it delivers clean, dependable multi-line communications inside commercial buildings.
Important: This cable features an indoor PVC jacket and is unshielded. It is intended solely for interior building deployments and must not be installed outdoors or exposed to direct weather elements.
