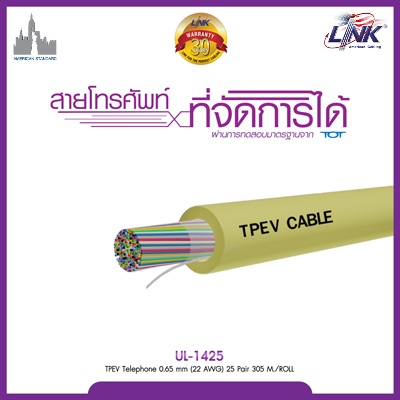

Specifications LINK UL-1425
| Features | Description |
|---|---|
| Device Type | Indoor Multipair Telephone Cable (TPEV / CAT 3) |
| Brand / Series | LINK (Interlink) / Telecommunication Cable Series |
| Standard / Category | Category 3 (CAT 3) / TPEV Voice Grade Unshielded Twisted Pair (UTP) |
| Conductor Material | Solid Bare Copper, 22 AWG (0.65 mm Diameter) |
| Pair Count | 25 Pairs (Organized in standard color-coded binder groups) |
| Jacket Material | Flame-Retardant PVC (Gray / Indoor Grade) |
| Application | Indoor telecommunication backbone, PBX distribution frames, MDF/IDF cross-connects, and multi-line voice networks |
| Performance Standard | Meets ANSI/TIA-568-C.2, ISO/IEC 11801, and ITU-T standards for voice communication |
|---|---|
| Core Construction | Industry-standard color-coded insulation with high-grade plastic wrapping tape over the cable core |
| Environment | Designed strictly for indoor wiring, riser shafts, cable trays, conduits, or wiring duct installations |
| Warranty | 30-Year Standard Manufacturer Warranty |
| SMART FEATURES | |
|---|---|
| Thicker 22 AWG Copper | Features 0.65 mm solid bare copper conductors that offer lower DC resistance, making it ideal for longer-distance indoor runs with minimal signal degradation |
| Indoor PVC Jacket | Encased in a smooth, durable, flame-retardant PVC jacket tailored to comply with indoor building codes and safety regulations |
| 25-Pair Mid Capacity | Supports up to 25 dedicated voice or analog signal lines in a single efficient bundle, perfect for medium-sized office floor distributions |
| Organized Binder Groups | Features industry-standard color-coded sub-units and binding yarns, allowing technicians to quickly identify and cross-connect individual pairs |
| GENERAL | |
|---|---|
| Model Code | UL-1425 |
| Packaging | Supplied in 305 Meters / Roll (Standard Pull Box or Wooden Reel) |
Note: The LINK UL-1425 is an indoor-rated 25-pair TPEV telephone cable utilizing heavy-duty 22 AWG (0.65 mm) solid copper conductors. Engineered for structured voice networks and enterprise PBX backbones, it delivers clean, dependable multi-line communications inside commercial buildings.
Important: This cable features an indoor PVC jacket and is unshielded. It is intended solely for interior building deployments and must not be installed outdoors or exposed to direct weather elements.
