| Features |
Description |
| Product Type |

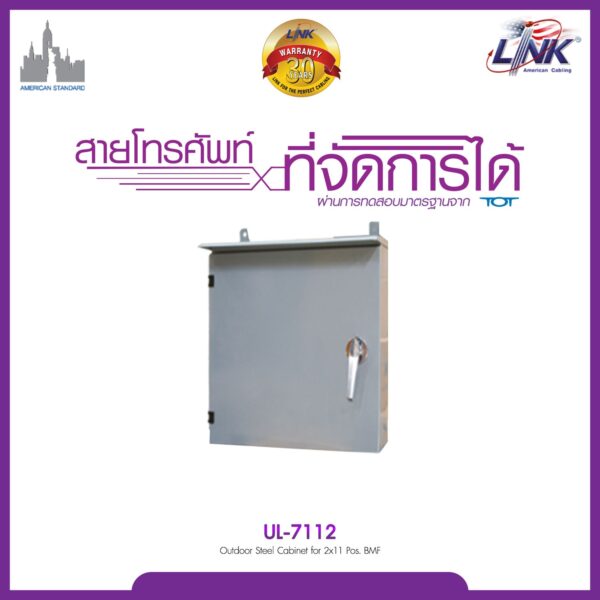

Outdoor Steel Cabinet |
| Model |
UL-7112 |
| Telephone Capacity |
200–220 Pairs |
| BMF Capacity |
2 × 11 Positions |
| Dimensions (W × H × D) |
45 × 45 × 15 cm |
| Material |
Electro-galvanized Steel |
| Material Thickness |
1.5 mm |
| Protection Rating |
IP55 |
| Color |
Light Gray |
| Construction & Features |
Description |
| Front Door |
Lockable front door with manual rotary handle; opens up to 180° |
| Roof Cover |
Extended roof cover designed to help protect the cabinet from rain |
| Back Side |
Upper and lower mounting bars with 4 mounting holes |
| Door Seal |
Special rubber gasket around the door to help prevent water ingress |
| Cable Entry |
Knockout holes for signal cable entry and exit |
| Internal Mounting Plate |
Removable mounting plate for telephone distribution modules and other equipment |
| Grounding |
Grounding wire connected between the cabinet body and front door |
| Application |
Description |
| Application |
Outdoor telephone distribution and communication systems |
| Installation |
Wall-mounted outdoor installation |
| Compatible Equipment |
LINK Back Mount Frames (BMF), Telephone Modules, Fiber Optic Distribution Equipment and Signal Distribution Equipment |
Note: The LINK UL-7112 is an Outdoor Steel Cabinet designed for telephone distribution systems. It supports 2 × 11-position BMF with a telephone capacity of approximately 200–220 pairs. The cabinet is made of 1.5 mm electro-galvanized steel and provides IP55 protection.
Important: The Back Mount Frames (BMF) and telephone modules are installed separately. The UL-7112 is designed for outdoor wall-mounted applications and includes cable entry openings, door sealing, and grounding provisions.
