Specifications LINK US-3024
| Features | Description |
|---|---|
| Product Type | CAT5E Patch Panel 24 Port |
| Category | CAT5E UTP |
| Ports | 24 × RJ45 |
| Rack Mount | 19-inch, 1U |
| Wiring Pattern | T568A / T568B Universal |
| Panel | Lightweight Aluminum Steel with Hairline Finish |
| Cable Management | Cable Support Bar and Cable Ties |
| Labeling | White Paper Insert with Clear Plastic Cover |
| Jack Contact | Phosphor Bronze with 50 Micro-inch Gold Plating |
| Terminal Block | Dual 110 IDC / KRONE, UL94V-0 ABS |
| Wire Size | 22–26 AWG Solid Cable |
| Standard | ANSI/TIA-568-C.2, ISO/IEC 11801 Class D, EN50173-1 |
| Application | Description |
|---|---|
| Network | 10/100/1000BASE-T Ethernet |
| PoE | Supports PoE and PoE+ Applications |
| Installation | 19-inch Rack and Network Cabinet |
| Cabling | CAT5E Structured Cabling Systems |
| Management | Organizes and Terminates 24 LAN Cables |

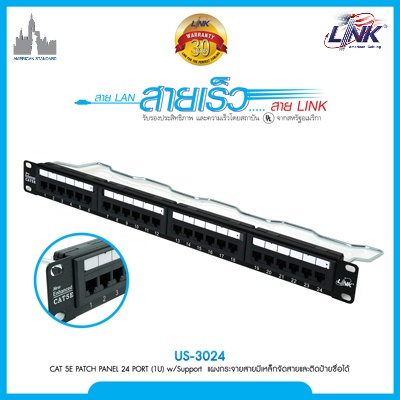

Note: US-3024 is a 24-port CAT5E UTP patch panel designed for 19-inch rack installation and uses 1U of rack space.
Important: Network cables and rack cabinet are not included.
