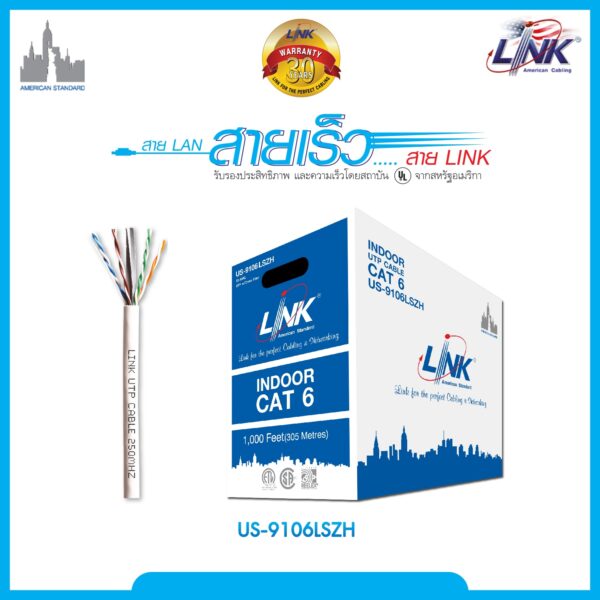

LINK US-9106LSZH
LINK US-9106LSZH
CAT6 UTP LSZH Network Cable (250MHz, 23AWG)
- Category 6 U/UTP cable with 4 pairs 23AWG solid bare copper conductor
- Supports bandwidth up to 250MHz for high-speed data transmission
- Cross Filler design reduces crosstalk and improves signal performance
- LSZH jacket provides low smoke and zero halogen protection
- Suitable for indoor horizontal cabling, LAN, PoE and network applications
- Complies with ANSI/TIA-568.2-E, ISO/IEC 11801 Class E and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK US-9106LSZH
| Features | Description |
|---|---|
| Device Type | CAT6 U/UTP LSZH LAN Cable |
| Category | Category 6 (CAT6) |
| Bandwidth | 250 MHz |
| Conductor | Solid Bare Copper |
| Wire Gauge | 23 AWG |
| Cable Construction | 4 Pairs (8 Wires) with Cross Filler |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Color | White |
| Cable Length | 305 Meters / Box (Reelex) |
| Application | Indoor LAN Cabling, Data Network, IP Camera, PoE, Enterprise Network |
| Cable Standard | ANSI/TIA-568.2-E Category 6, ISO/IEC 11801 Class E |
|---|---|
| Category | CAT6 U/UTP |
| Frequency | 250 MHz |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Number of Conductors | 4 Pairs / 8 Wires |
| Insulation Material | HDPE (High Density Polyethylene) |
| Cross Filler | FRPE Cross Filler for Pair Separation |
| Outer Jacket | Lead Free FR-LSZH |
| Cable Diameter | 5.9 ± 0.2 mm |
| SMART FEATURES | |
|---|---|
| LSZH Safety Jacket | Reduces Smoke and Toxic Halogen Gas Emission During Fire Conditions, Improving Indoor Safety |
| Cross Filler Design | Maintains Pair Separation and Reduces Crosstalk for Better Signal Performance |
| CAT6 Performance | Supports High-Speed Ethernet Applications up to 5 Gigabit Ethernet |
| PoE Support | Supports PoE and PoE+ Applications According to IEEE 802.3af/at |
| Solid Copper Conductor | Provides Stable Transmission Performance and Lower Signal Loss |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP LSZH Indoor Cable |
| Impedance | 100 ± 5 Ohms |
| DC Resistance | ≤ 7.32 Ω/100m |
| Propagation Delay | ≤ 536 ns/100m @250MHz |
| Delay Skew | ≤ 30 ns |
| Minimum Bend Radius | 4 × Cable Diameter |
| Tensile Strength | 110 N |
| Installation Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Standards Compliance | RoHS, IEC 60332-1, IEC 60754, IEC 61034, UL/CSA |
| Warranty | 30 Years |
Note: The LINK US-9106LSZH is a Category 6 U/UTP LAN cable featuring 23 AWG solid bare copper conductors, 250 MHz bandwidth, cross filler construction, and LSZH (Low Smoke Zero Halogen) jacket. It is designed for indoor structured cabling systems, supporting high-speed Ethernet, IP Camera, PoE, and enterprise network applications.
Important: The LINK US-9106LSZH is intended for indoor installation where enhanced fire safety is required. The LSZH jacket reduces smoke and corrosive gas emissions during fire conditions, making it suitable for offices, buildings, data rooms, and other enclosed environments. The cable supports CAT6 performance standards with 250 MHz bandwidth and 23 AWG solid copper construction.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
