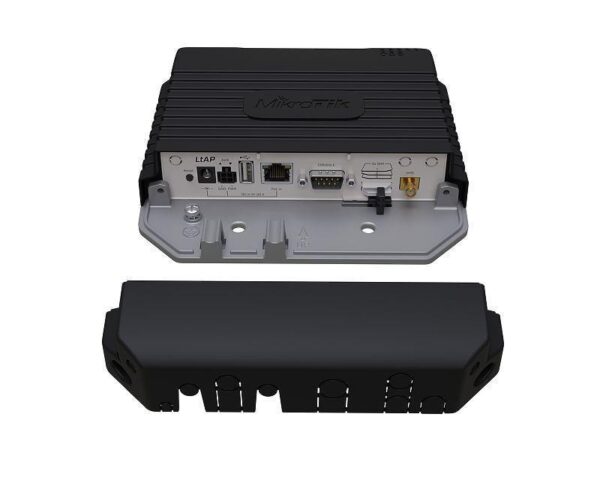

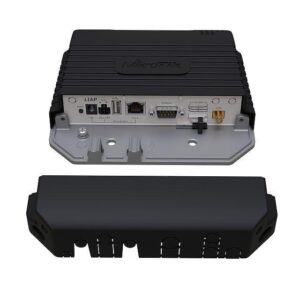

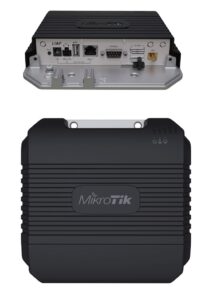

Specifications MikroTik RBLtAP-2HnD&R11e-LTE (LtAP LTE Kit)
| Features | Specifications |
|---|---|
General |
|
| Product Code | RBLtAP-2HnD&R11e-LTE |
| Product Name | LtAP LTE Kit |
| Product Type | Industrial LTE Wireless Router |
| Architecture | MMIPS |
| CPU | MediaTek MT7621A |
| CPU Core Count | 2 |
| CPU Nominal Frequency | 880 MHz |
| CPU Threads | 4 |
| RAM | 128 MB |
| Storage | 16 MB Flash |
| Operating System | MikroTik RouterOS |
| RouterOS License | Level 4 |
| IPsec Hardware Acceleration | Supported |
Wireless |
|
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency Band | 2.4 GHz |
| Maximum Wireless Data Rate | 300 Mbps |
| Wireless Chains | 2 x 2 Dual Chain |
| Wireless Chipset | Qualcomm Atheros AR9382 |
| Wireless Antenna Gain | 2.5 dBi |
| Antenna Beamwidth | 360° |
Mobile Network |
|
| Mobile Modem | MikroTik R11e-LTE |
| LTE Category | Category 4 |
| Maximum LTE Download Speed | 150 Mbps |
| Maximum LTE Upload Speed | 50 Mbps |
| LTE FDD Bands | 1 (2100 MHz), 2 (1900 MHz), 3 (1800 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz) |
| LTE TDD Bands | 38 (2600 MHz), 40 (2300 MHz) |
| 3G Category | R7 |
| Maximum 3G Download Speed | 21 Mbps |
| Maximum 3G Upload Speed | 5.76 Mbps |
| 3G Bands | 1 (2100 MHz), 2 (1900 MHz), 5 (850 MHz), 8 (900 MHz) |
| 2G Category | Class 12 |
| 2G Bands | 2 (1900 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz) |
Network Interfaces |
|
| Ethernet Port | 1 x 10/100/1000 Mbps Gigabit Ethernet |
| SIM Slots | 3 x Mini SIM |
| Mini PCIe Slots | 2 |
| USB Port | 1 x USB 2.0 Type-A |
| Serial Port | 1 x RS232 |
GPS and Monitoring |
|
| GPS | Built-in GPS Receiver |
| External GPS Antenna Connector | MMCX |
| LTE Antenna Gain | 4 dBi (u.FL Connector) |
| Voltage Monitoring | Supported |
| PCB Temperature Monitoring | Supported |
| USB Power Reset | Supported |
Power |
|
| Power Inputs | 3 (DC Jack, Passive PoE-IN, Automotive Connector) |
| DC Jack Input Voltage | 12–30 V DC |
| Automotive Input Voltage | 12–27 V DC |
| PoE Input | Passive PoE |
| PoE Input Voltage | 12–30 V DC |
| Maximum Power Consumption | 24 W |
| Power Consumption Without Attachments | 12 W |
| Cooling | Passive Cooling |
Physical and Environmental |
|
| Dimensions | 170 x 162 x 40 mm |
| Operating Temperature | -40°C to +50°C (Tested Ambient Temperature) |
| Ingress Protection | IP54 |
| MTBF | Approximately 200,000 Hours at 25°C |
Certifications |
|
| Certifications | CE, FCC, IC, E-MARK, EAC, RoHS |
Note: LTE performance depends on carrier coverage, signal strength, SIM card service, and network conditions. The device supports three Mini SIM slots, but SIM slot availability and modem compatibility depend on the installed configuration. The USB port and the top Mini PCIe slot share resources and cannot be used simultaneously.
