| Features |
Description |
| Product Type |
8-Channel 1 HDD PoE Network Video Recorder |
| IP Video Input |
8 Channels |
| Incoming Bandwidth |
64 Mbps |
| Outgoing Bandwidth |
48 Mbps |
| Video Compression |
Ultra 265 / H.265 / H.264 |
| Recording Resolution |
4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Synchronous Playback |
8 Channels |
| HDMI Output |
Up to 4K (3840 × 2160) @ 30 Hz |
| VGA Output |
Up to 1920 × 1080 @ 60 Hz |
| Hard Disk |
1 × SATA Interface, up to 6 TB |
| Network Interface |
1 × RJ45 10/100 Mbps |
| PoE Ports |
8 × Independent 10/100 Mbps PoE Ports |
| PoE Power |
Max. 30 W per port, 75 W total |
| PoE Standard |
IEEE 802.3at / IEEE 802.3af |
| USB |
2 × USB 2.0 |
| Audio Output |
1 × RCA |
| Power Supply |
DC 52 V / 1.8 A |
| Operating Temperature |
-10°C ~ 55°C |
| Dimensions |
260 × 240 × 46 mm |
| Weight |
≤ 1.1 kg without HDD |
| VIDEO & NETWORK |
| IP Video Input |
8 Channels |
| Incoming Bandwidth |
64 Mbps |
| Outgoing Bandwidth |
48 Mbps |
| Remote Users |
128 |
| Network Protocols |
TCP/IP / P2P / UPnP / NTP / DHCP / PPPoE / HTTP / HTTPS / DNS / DDNS / SMTP / RTSP |
| ONVIF |
Profile S / Profile G / Profile T |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| VIDEO OUTPUT & RECORDING |
| HDMI Output |
3840 × 2160 @ 30 Hz; 1920 × 1080 @ 60/50 Hz; 1600 × 1200 @ 60 Hz; 1280 × 1024 @ 60 Hz; 1280 × 720 @ 60 Hz; 1024 × 768 @ 60 Hz |
| VGA Output |
1920 × 1080 @ 60/50 Hz; 1600 × 1200 @ 60 Hz; 1280 × 1024 @ 60 Hz; 1280 × 720 @ 60 Hz; 1024 × 768 @ 60 Hz |
| Recording Resolution |
4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Synchronous Playback |
8 Channels |
| Live View Display |
1 / 4 / 6 / 8 / 9 |
| Corridor Mode |
3 / 4 / 5 / 7 / 9 Screen |
| DECODING |
| Decoding Format |
Ultra 265 / H.265 / H.264 |
| Decoding Capability |
1 × 4K @ 30 fps; 4 × 5MP @ 25 fps; 4 × 4MP @ 25 fps; 4 × 3MP @ 25 fps; 4 × 1080p @ 30 fps; 8 × 720p @ 30 fps |
| SMART FEATURES |
| VCA Detection by Camera |
Intrusion Detection / Cross Line Detection / Enter Area / Leave Area / Audio Detection / Ultra Motion Detection (UMD) |
| Face Detection |
Supported |
| Smart Intrusion Prevention |
Supported |
| Behavior Search |
Supported |
| General Alarm |
Motion / Tampering / Human Body Detection / Video Loss / Alarm Input / Audio Detection |
| Alert Alarm |
IP Conflict / Network Disconnected / Disk Offline / Disk Abnormal / Illegal Access / Hard Disk Space Low / Hard Disk Full / Recording-Snapshot Abnormal |
| STORAGE |
| SATA |
1 × SATA Interface |
| Maximum Capacity |
Up to 6 TB per HDD |
| Snapshot |
FTP / Schedule / Event Snapshot; 1-channel snapshot up to D1 resolution |
| PoE |
| PoE Interface |
8 × Independent 10/100 Mbps PoE Network Interfaces |
| Maximum Power per Port |
30 W |
| Total PoE Power |
75 W |
| Supported Standards |
IEEE 802.3at / IEEE 802.3af |
| INTERFACE |
| Network |
1 × RJ45 10/100 Mbps |
| PoE |
8 × RJ45 10/100 Mbps PoE |
| HDMI |
1 × HDMI |
| VGA |
1 × VGA |
| Audio Output |
1 × RCA |
| USB |
2 × USB 2.0 |
| RS485 |
N/A |
| Alarm Input / Output |
N/A |
| POWER & GENERAL |
| Power Supply |
DC 52 V / 1.8 A |
| Power Consumption |
≤ 9 W without HDD |
| Operating Temperature |
-10°C ~ 55°C |
| Operating Humidity |
≤90% RH, Non-Condensing |
| Dimensions |
260 × 240 × 46 mm |
| Weight |
≤ 1.1 kg without HDD |

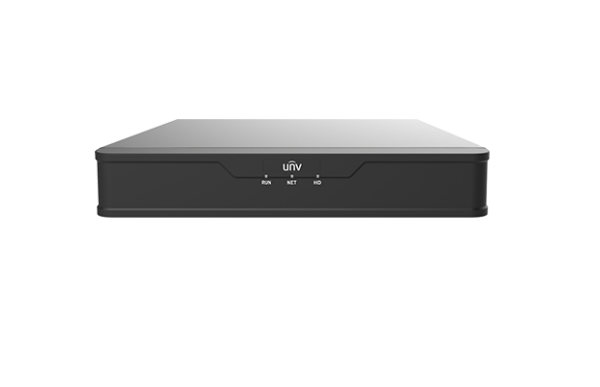

Note: The Uniview NVR301-08S3-P8 is an 8-channel 1-HDD PoE Network Video Recorder supporting Ultra 265/H.265/H.264, up to 64 Mbps incoming bandwidth and 48 Mbps outgoing bandwidth. It supports up to 4K recording and HDMI output, 8-channel synchronous playback, one SATA HDD up to 6 TB, and 8 independent PoE ports with up to 75 W total PoE power. It also supports ONVIF Profile S/G/T and multiple smart video analytics.
Important: HDD is not included. Verify the required HDD capacity and camera compatibility before installation.
