Omada SG5428XMPP | 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots

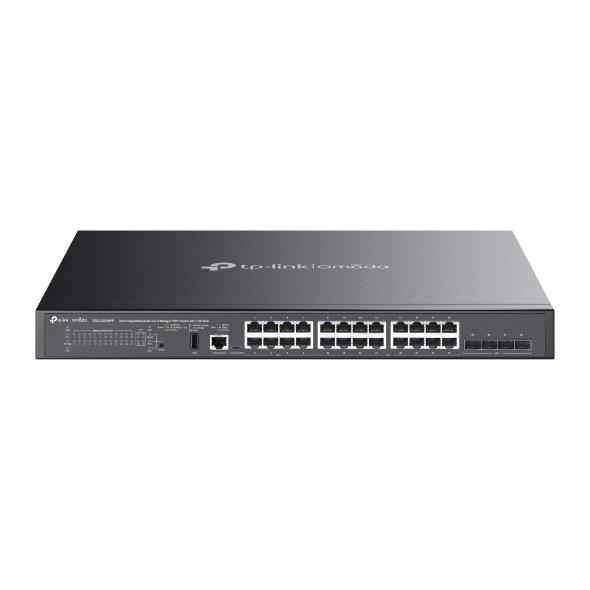

TP-Link Omada SG5428XMPP
24-Port Gigabit Stackable L3 Managed PoE++ Switch
- 24×Gigabit RJ45 ports with 4×10G SFP+ uplink slots
- 8×PoE++ ports (90W/port) and 16×PoE+ ports (30W/port)
- Supports IEEE 802.3af/at/bt with 500W PoE budget
- Supports L3 Routing, VLAN, ACL, QoS, OSPF and Static Routing
- Supports Physical Stacking up to 4 switches and Omada SDN Management
- Rackmount design suitable for enterprise, CCTV and high-performance networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specification Omada SG5428XMPP
| Features | Description |
|---|---|
| Device Type | 24-Port Gigabit Stackable L3 Managed PoE++ Switch with 10G SFP+ Uplink |
| Network Ports | 24 × Gigabit RJ45 Ports + 4 × 10Gbps SFP+ Slots |
| PoE Standard | IEEE 802.3af/at/bt PoE |
| PoE Budget | Up to 500W Total PoE Power Budget |
| PoE Output | 8 × PoE++ Up to 90W / 16 × PoE+ Up to 30W |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| Management | Omada Cloud Controller, Web GUI, CLI, SNMP |
| Smart Features | VLAN, ACL, QoS, Static Routing, Stackable, ERPS, IGMP Snooping |
| Design | Metal Rackmount Case with Smart Fans |
| Application | Enterprise Network, IP Camera, Wi-Fi Access Point |
| Device Type | Omada L3 Managed Stackable PoE++ Switch |
|---|---|
| Network Ports | 24 × Gigabit RJ45 Ports (8 × PoE++ / 16 × PoE+) |
| Uplink Ports | 4 × 10G SFP+ Slots |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16K |
| Jumbo Frame | 9 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at / 802.3bt |
| PoE Ports | 24 × Gigabit PoE Ports |
| Total PoE Budget | 500W |
| PoE++ Ports | 8 Ports Up to 90W Per Port |
| PoE+ Ports | 16 Ports Up to 30W Per Port |
| SMART FEATURES | |
|---|---|
| Management | Omada Cloud Controller, Omada App, Web GUI, CLI |
| VLAN | 802.1Q VLAN, MAC VLAN, Protocol VLAN, Voice VLAN |
| QoS | 802.1p CoS / DSCP Priority, Bandwidth Control |
| Security | ACL, 802.1X, IP-MAC-Port Binding, DHCP Snooping, Port Security |
| Multicast | IGMP Snooping v1/v2/v3, MLD Snooping |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3z / 802.3ae / 802.3af / 802.3at / 802.3bt |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| Layer 3 Features | Static Routing, DHCP Relay, IPv4/IPv6 Dual Stack |
| GENERAL | |
|---|---|
| Housing | Metal Rackmount Case |
| Cooling | Smart Fan Design |
| Power Supply | 100–240V AC, 50/60Hz |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 440 × 330 × 44 mm |
| Installation | Rack Mountable |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The Omada SG5428XMPP is a 24-port Stackable L3 Managed PoE++ switch with 500W PoE budget, 8 PoE++ ports, 16 PoE+ ports, and 4×10G SFP+ uplinks. Suitable for enterprise networks, IP cameras, and high-power devices.
