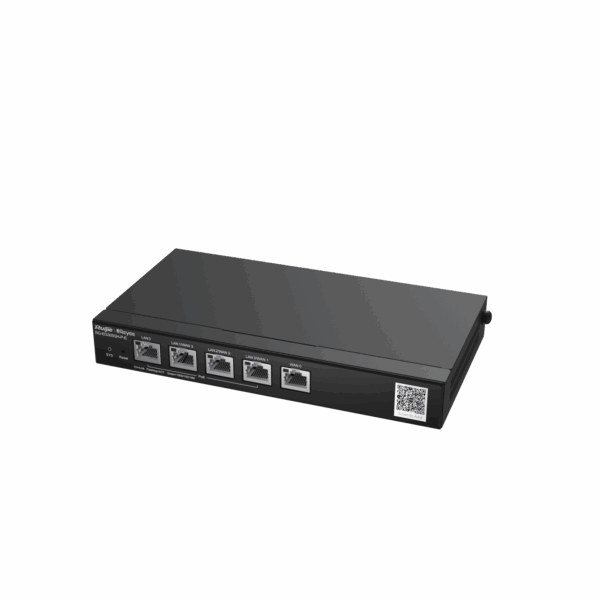

Specifications REYEE RG-EG305GH-P-E

Features	Description
Product Type	Cloud Managed PoE Office Router
Ethernet Ports	5 × 10/100/1000BASE-T
WAN Ports	1
LAN Ports	1 Fixed LAN Port
PoE Ports	4 PoE Out
PoE Budget	60 W
Throughput	1.5 Gbps
Concurrent Clients	Up to 350

Network & Routing
Ethernet Speed	10/100/1000 Mbps
Multi-WAN	Supported
Load Balancing	Supported
Link Redundancy	Supported
Policy-Based Routing	Supported
VLAN	Multiple LAN Networks via VLAN
PPPoE	Supported
Traffic Management	Application- and User-Based Bandwidth Management
Cloud Management	Ruijie Cloud / Reyee App

VPN
VPN Tunnels	Up to 64
VPN Users	Up to 300
VPN Protocols	OpenVPN, IPSec, L2TP, PPTP
VPN Traffic Control	Tunnel-Based Traffic Control

Hardware
CPU	Dual-Core Processor, 1.35 GHz per Core
RAM	512 MB
Flash Memory	256 MB
PoE Budget	60 W
Installation	Desktop

Management & Security
Management	Web GUI / Ruijie Cloud / Reyee App
Cloud Features	Remote Monitoring, Remote Maintenance and Cloud Firmware Upgrade
DDNS	Ruijie Free DDNS
Firewall	Basic Firewall
Behavior Control	Supported
Application Identification	Supported
QoS	Application and User Group Based Traffic Control

Power & Physical
Power Supply	External Power Adapter
Dimensions	202 × 108 × 28 mm
Weight	Approx. 1.2 kg
Mounting	Desktop

Environment
Operating Temperature	0°C to +40°C

Note: The REYEE RG-EG305GH-P-E is a 5-port Gigabit cloud-managed PoE router designed for offices, hotels, schools, retail networks and CCTV applications. It combines multi-WAN, intelligent load balancing, bandwidth management, cloud management and VPN functions in a compact device.

Important: The RG-EG305GH-P-E provides 4 PoE output ports with a total PoE budget of 60 W. The device supports up to 350 concurrent clients and 1.5 Gbps throughput in both Turbo and Normal modes according to the latest Reyee specifications.
