RG-NBS3300-16MG4XS-HP

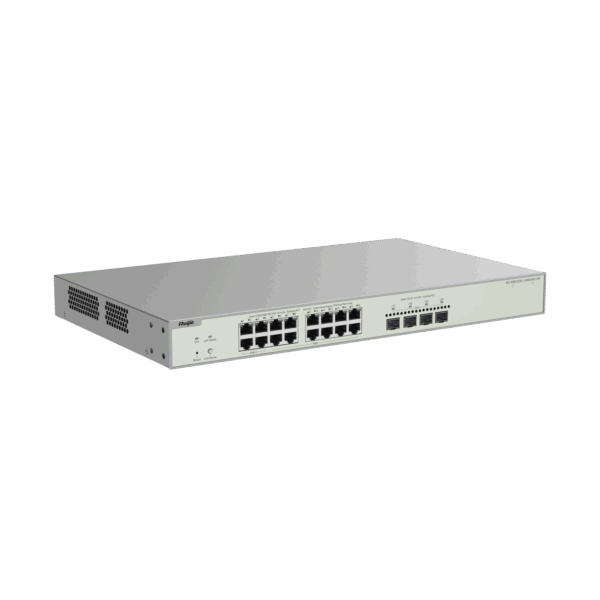

RUIJIE RG-NBS3300-16MG4XS-HP

16-Port Multi-Gigabit Layer 2+ PoE++ Managed Switch

  • 16 × 10/100/1000/2500BASE-T Multi-Gigabit Ethernet ports
  • 12 × PoE+ ports and 4 × PoE++ ports with 370W total PoE budget
  • 4 × 10G SFP+ ports for high-speed uplinks
  • 160Gbps switching capacity with 119.04Mpps forwarding rate
  • Supports VLAN, Link Aggregation, IGMP Snooping and PoE Watchdog
  • Ruijie Cloud management with 6kV surge protection
หมวดหมู่: , , ป้ายกำกับ:

Specifications Ruijie Reyee RG-NBS3300-16MG4XS-HP

Features Description
Product Type Layer 2+ Managed Multi-Gigabit PoE Switch
RJ45 Ports 16 × 10/100/1000/2500BASE-T
PoE Ports 16 × PoE, including 12 × PoE+ and 4 × PoE++
Uplink Ports 4 × 10G SFP+
PoE Budget 370 W
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps
Management Ruijie Cloud / Reyee App / Web
Warranty 5 Years
PORTS & POE
RJ45 Ports 16 × 10/100/1000/2500BASE-T
PoE Standard IEEE 802.3af/at/bt
PoE++ Ports Ports 1–4
PoE+ Ports Ports 5–16
Maximum PoE Output Up to 90 W per PoE++ port
Total PoE Budget 370 W
PoE Watchdog Supported
UPLINK & PERFORMANCE
SFP+ Ports 4 × 10GE SFP+
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps
Jumbo Frame Up to 9216 bytes
MTBF 400,000 hours
NETWORK FEATURES
VLAN Supported
Link Aggregation Supported
IGMP Snooping Supported
Port Isolation Supported
Broadcast Storm Control Supported
CPU Protection CPP (CPU Protect Policy)
Cloud Management Ruijie Cloud and Reyee App
Zero-Touch Provisioning Supported via Ruijie Cloud
HARDWARE & POWER
Power Supply Internal AC Power Supply
Input Voltage 100–240 V AC, 50/60 Hz
Maximum Power Consumption 460 W
RAM 512 MB
Flash Memory 256 MB
Cooling 2 × Fans
MAC Address Table 32,000 entries
PHYSICAL & ENVIRONMENT
Enclosure Metal
Dimensions 440 × 267.5 × 43.6 mm (W × D × H)
Weight 3.6 kg
Mounting Rack Mount
Operating Temperature 0°C to +50°C
Operating Altitude -500 m to +5,000 m
Surge Protection Service port: ±6 kV common mode; Power connector: ±6 kV common and differential mode

Note: The RG-NBS3300-16MG4XS-HP is designed for high-bandwidth Wi-Fi 6/7 deployments, providing 2.5G PoE access ports and 10G SFP+ uplinks for high-density network environments.

Important: The total PoE output is limited to 370 W. Ports 1–4 support IEEE 802.3bt PoE++ with up to 90 W per port, while ports 5–16 support IEEE 802.3af/at PoE.

Datasheet
