| Features |
Description |
| Product Type |
Passive Optical Splitter |
| Series |
e-Lighten Passive Optical Splitter |
| Optical Configuration |
2-In 16-Out Uniform Optical Splitter |
| Optical Connector |
SC |
| Uplink Optical Ports |
2 |
| Splitter Downlink Ports |
16 |
| Power Requirement |
None / Passive |
| Installation |
Rack Mount / Wall Mount |
| OPTICAL SPECIFICATIONS |
| Splitter Type |
Uniform Optical Splitter |
| Optical Input Ports |
2 |
| Optical Output Ports |
16 |
| Split Ratio |
2 × 1:8 |
| Optical Connector |
SC |
| Optical Technology |
Passive Optical Splitter |
| Optical Aggregation |
Passive Aggregation |
| NETWORK APPLICATION |
| Network Type |
Passive All-Fiber LAN |
| Application |
e-Lighten Optical Access Network |
| Topology |
Point-to-Multipoint Optical Distribution |
| Fiber Connection |
Direct Fiber Connection |
| Passive Operation |
Supported |
| Power Requirement |
No Power Required |
| INSTALLATION |
| Rack Mounting |
Supported |
| Wall Mounting |
Supported |
| Waterproof Enclosure |
Compatible |
| Standalone Installation |
Supported |
| Combined Installation |
Supported |
| Mounting Type |
Rack Mount / Wall Mount |
| MECHANICAL |
| Enclosure Material |
Durable Iron Casing |
| Dimensions |
220 × 130 × 42mm |
| Design |
Compact Metal Enclosure |
| Installation |
Rack / Wall Mounting |
| ENVIRONMENT & RELIABILITY |
| Operating Temperature |
-40°C to +85°C |
| Power Consumption |
0W – Passive Device |
| Reliability |
High Reliability |
| Enclosure |
Iron Casing |
| GENERAL |
| Product Type |
2-In 16-Out Passive Optical Splitter |
| Fiber Interface |
SC |
| Number of Inputs |
2 |
| Number of Outputs |
16 |
| Power Supply |
Not Required |
| Dimensions |
220 × 130 × 42mm |
| Warranty |
3 Years |

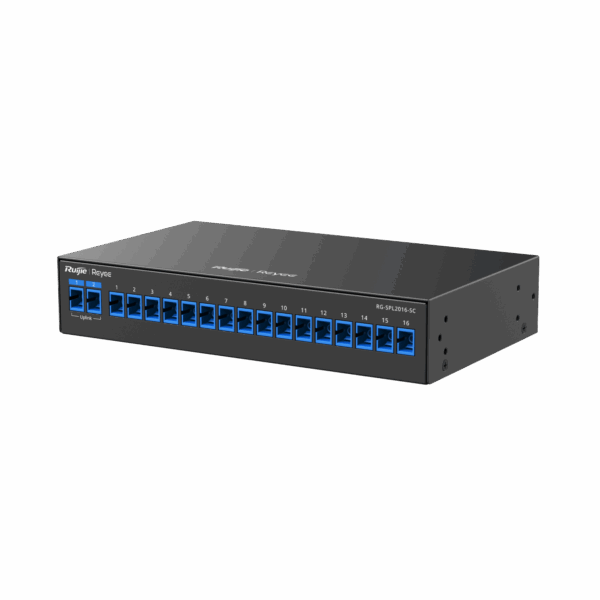

Note: The Reyee RG-SPL2016-SC is a 2-In 16-Out Uniform Passive Optical Splitter designed for e-Lighten passive optical networks. It provides 2 optical input ports and 16 splitter output ports, allowing optical signals to be passively distributed without requiring electrical power. The unit features a durable iron casing, compact design and supports rack-mounted or wall-mounted installation.
Important: The Reyee RG-SPL2016-SC is a Passive Optical Splitter featuring 2 optical inputs and 16 optical outputs with SC interfaces. It requires no power supply and supports direct fiber connection and passive optical aggregation. The unit can be installed as a standalone rack-mounted unit, combined rack-mounted unit or wall-mounted unit. Its compact metal enclosure measures 220 × 130 × 42mm and supports an operating temperature of -40°C to +85°C.
