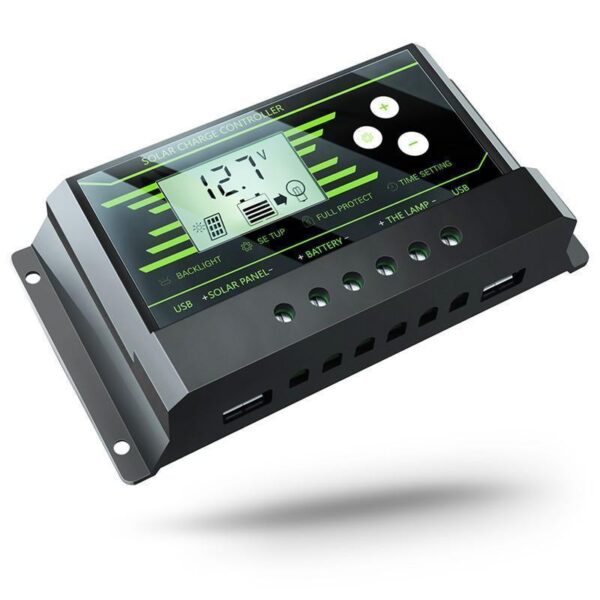

Solar Charger Controller Z20 12v/24v 20+USB
Solar Charger Controller Z20 12v/24v 20+USB
คุณสมบัติ
- คอนโทรล ชาร์เจอร์ ตัวเครื่องสามารถเลือกใช้แรงดันตามความเหมาส่ง 12v 24v ได้อัตโนมัติ
- ทนกระแสสูงสุดไม้ได้ 20A (ใช้งานจริงควรเผื่อไวเ 20%)
- สามาระตั้งเวลาเปิดปิดหลอดไฟ หรือ โหลด การใช้งาน ได้ด้วยตัวเแง
- ผู้ใช้สามารถปรับตั้งค่าการชาร์จที่เหมาสมไ้ตัวตนเอง
- มีหน้าจอแสดงผล LCD แสดงสถานะ ใช้งานได้ง่าย
- มีช่อง USB 2 ช่อง สำหรับชาร์จโทรศัพท์
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Battery Voltage | 12V/24V Auto | ||
Charge Current | 10A | 20A | 30A |
Discharge Current | 10A | 20A | 30A |
Max Solar Panel Input | 23V(12V Battery)/46V(24V Battery) | ||
Equalization | 14.4V | ||
Float Voltage | 13.7V(default,adjustable) | ||
Discharge Stop | 10.7V(default,adjustable) | ||
Discharge Reconnect | 12.6V(default,adjustbable) | ||
Charge Reconnect | 13V | ||
Voltage of open light | Solar Panel 8V(Light lights delay) | ||
USB Output | 5V/2.5A(Max) Dual USB | ||
Self-consume | <10mA | ||
Operating temperature | -35°C~+60°C | ||
Size/Weight | 149*73*33mm/200g | ||
*All red color voltage X2 while using 24V system |
Feacture :
1. Build-in industrial micro controller
2. Large screen LCD display,charge and discharge parameters can be adjusted ,with power off memory function.
3.Screen with backlight (Note:backlight ,backlight in no operation after 5S or so automatically shut down)
4.Dual USB output ,the maximum current of 2.5A ,to support Apple’s mobile phone charging
5 Fully 3-State PWM charge management
6.Build-in short-circuit protection,open-circuit protection ,reverse protection ,over-load protection
7.Reverse current protection ,low hear production
