| Features |
Description |
| Device Type |
24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots |
| Network Ports |
24 × Gigabit PoE+ RJ45 Ports + 4 × Gigabit SFP Slots |
| PoE Standard |
IEEE 802.3af/at PoE+ |
| PoE Budget |
Up to 192W Total PoE Power Budget |
| PoE Output |
Up to 30W Per PoE Port |
| Switching Capacity |
56 Gbps |
| Packet Forwarding Rate |
41.7 Mpps |
| Management |
Web UI, CLI, SNMP, RMON |
| Design |
19-inch Rackmount Metal Housing |
| Application |
IP Camera, Wireless AP, VoIP, SMB Network |
| Power Supply |
100-240V AC |
| Device Type |
Managed Gigabit PoE+ Switch |
| PoE Ports |
24 × 10/100/1000Mbps RJ45 PoE+ Ports |
| SFP Slots |
4 × Gigabit SFP Slots |
| Switching Capacity |
56 Gbps |
| Packet Forwarding Rate |
41.7 Mpps |
| MAC Address Table |
16K |
| Packet Buffer Memory |
1.5 MB |
| PoE FEATURES |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Output |
Up to 30W Per Port |
| Total PoE Budget |
Up to 192W |
| PoE Management |
Intelligent PoE Power Management |
| SMART FEATURES |
| VLAN |
802.1Q VLAN, Private VLAN, Voice VLAN |
| QoS |
802.1p/DSCP QoS with Priority Scheduling |
| Security |
ACL, 802.1X Authentication, Port Security |
| Management |
Web GUI, CLI, SNMP, RMON |
| NETWORK |
| Network Standard |
IEEE 802.3i / 802.3u / 802.3ab / 802.3z / 802.3x / 802.3af / 802.3at |
| Link Aggregation |
IEEE 802.3ad LACP |
| Spanning Tree |
STP / RSTP / MSTP |
| Multicast |
IGMP Snooping v1/v2/v3 |
| PROTECTION |
| Access Control |
ACL, 802.1X Port Authentication |
| Storm Control |
Broadcast / Multicast / Unknown Unicast Control |
| Housing |
Metal Rackmount Case |
| Cooling |
2 Smart Cooling Fans |
| GENERAL |
| Power Supply |
100-240V AC, 50/60Hz |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Dimensions |
440 × 220 × 44 mm |
| Installation |
19-inch Rackmount |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

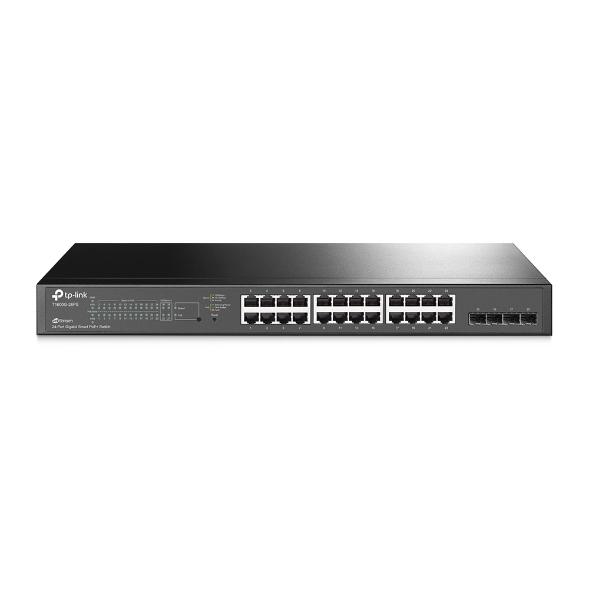

Important: The TP-Link T1600G-28PS is a 24-port Gigabit Smart PoE+ switch with a 192W PoE budget and 4 Gigabit SFP slots. It supports VLAN, QoS, ACL, and centralized management, making it ideal for enterprise and IP surveillance networks.>
