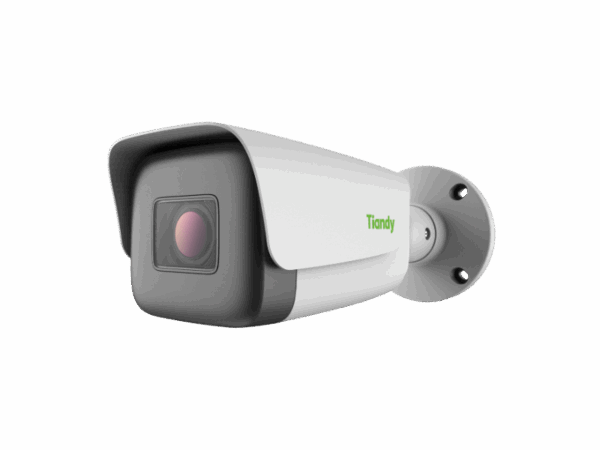

TC-C35TS Spec: I8/A/E/Y/M/H/2.7-13.5mm/V4.0

Tiandy รุ่น TC-C35TS Spec: I8/A/E/Y/M/H/2.7-13.5mm/V4.0

5MP S+265 Starlight Motorized IR Bullet 80M Surge Protection 6KV

  • Full Metal Housing
  • Motorized Lens 2.7-13.5mm
  • Up to 2592×1944@30fps, 1920×1080@60fps
  • S+265/H.265/H.264/M-JPEG
  • Min. illumination Color: 0.001Lux@F1.6
  • Smart IR, IR Range: 80m
  • Support Video Analytics
  • Support Human/Vehicle Classification
  • Support Face Capture Mode
  • Audio I/O 1/1, alarm I/O 2/1
  • Plugin Free
  • Operating Conditions -35℃~65℃, 0~95% RH
  • POE, IP67, IK10
  • Support Realtime Brightness Function
  • Surge Protection 6KV
  • CE, FCC
หมวดหมู่: , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Tiandy TC-C35TS Spec: I8/A/E/Y/M/H/2.7-13.5mm/V4.0

5MP S+265 Starlight Motorized IR Bullet 80M Surge Protection 6KV

Features

  • Full Metal Housing
  • Motorized Lens 2.7-13.5mm
  • Up to 2592×1944@30fps, 1920×1080@60fps
  • S+265/H.265/H.264/M-JPEG
  • Min. illumination Color: 0.001Lux@F1.6
  • Smart IR, IR Range: 80m
  • Support Video Analytics
  • Support Human/Vehicle Classification
  • Support Face Capture Mode
  • Audio I/O 1/1, alarm I/O 2/1
  • Plugin Free
  • Operating Conditions -35℃~65℃, 0~95% RH
  • POE, IP67, IK10
  • Support Realtime Brightness Function
  • Surge Protection 6KV
  • CE, FCC

Specifications TC-C35TS Spec: I8/A/E/Y/M/H/2.7-13.5mm/V4.0

Camera
Image Sensor 1/2.8″ CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, roate 0~360°
Lens
Focal Length Motorized
Focus 2.7-13.5mm
Lens Mount Φ14
Aperture F1.6~F3.3, Fixed
FOV Horizontal field of view: 94.2° ~ 29.3°
Illuminator
IR Light 4
IR Distance Up to 80 m
Wavelength 850nm
White LEDs/Warmlights N/A
Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps
Max. Image Resolution 2592×1944
Main Stream PAL: 25fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 50fps (1920×1080, 1280×720)
NTSC: 30fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720)
Sub Stream PAL: 25fps (704×576, 704×288, 640×480, 352×288)
NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
Third Stream PAL: 25fps(1920×1080, 1280×720, 704×576, 704×288, 640×480, 352×288)
NTSC: 30fps(1920×1080, 1280×720, 704×480, 704×240, 640×480, 352×240)
Image Settings Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
Picture Overlay Yes
Privace Mask Yes, 4 regions
Smart Defog Yes
Feature TC-C35TS Spec: I8/A/E/Y/M/H/2.7-13.5mm/V4.0
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Voltage Abnormal
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Safety Helmet Detection, Human/Vehicle Classification
Early Warning(EW) N/A
Network TC-C35TS Spec: I8/A/E/Y/M/H/2.7-13.5mm/V4.0
ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, IEEE802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, SNTP, RTMP, SFTP, NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web6 (Internet Explorer, Google Chrome, Mozilla Firefox)
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port, RS 485
Audio I/O 1/1, Mic in
Alarm I/O 2/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB
General TC-C35TS Spec: I8/A/E/Y/M/H/2.7-13.5mm/V4.0
Web Client Language 15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -35℃ ~65℃ , 0~95% RH
Power Supply DC12V±25%/PoE (IEEE802.3af)
Power Consumption MAX: 8.5W (12V) MAX: 10W (PoE)
Protection IP67, IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Dimensions 264.3x95x83.2mm (10.41×3.74×3.28inch)
Weight 1.15kg (2.54lb)
