Specifications Hikvision Hilook THC-B223
| Features | Specifications |
|---|---|
Camera |
|
| Product Type | 2 MP EXIR Bullet Camera |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 × 1080 |
| Signal System | PAL / NTSC |
| Video Frame Rate | PAL: 1080p @ 25 fps; NTSC: 1080p @ 30 fps |
| Min. Illumination | 0.005 Lux @ F1.2, AGC ON; 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Up to 16× |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
Lens |
|
| Lens Type | Fixed Focal Lens |
| Lens Options | 2.8 mm, 3.6 mm, 6 mm |
| Lens Mount | M12 |
| 2.8 mm Field of View | Horizontal: 106° |
| 3.6 mm Field of View | Horizontal: 82° |
| 6 mm Field of View | Horizontal: 51° |
Image |
|
| Wide Dynamic Range | 120 dB WDR |
| AGC | High / Medium / Low |
| Day/Night Mode | Auto / Color / B&W |
| Image Mode | STD / HIGH-SAT |
| Image Enhancement | Brightness, Sharpness, 3D DNR, Mirror and Smart IR |
| Backlight Compensation | HLC / BLC |
| White Balance | Supported |
IR Illumination |
|
| IR Type | EXIR 2.0 |
| IR Range | Up to 50 m |
| Smart IR | Supported |
Video Output |
|
| Video Output | 1 × HD Analog Output |
| Video Format | TVI / AHD / CVI / CVBS |
| Output Switching | Switchable via Switch Button |
General |
|
| Material | Front Cover: Metal; Main Body: Plastic; Bracket: Plastic |
| Protection Level | IP66 |
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 5.6 W |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 90% or less, non-condensing |
| Dimensions | 75.4 × 230.8 × 87.2 mm |
| Weight | Approx. 352 g |

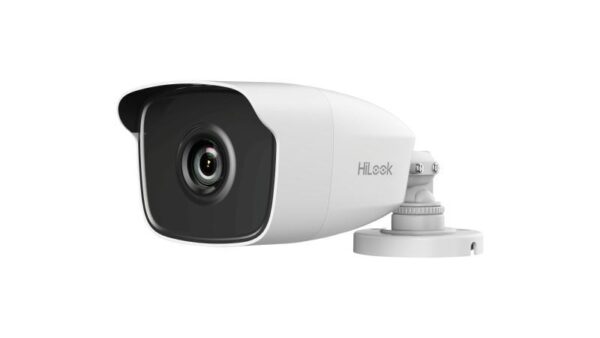

Note: The Hikvision THC-B223 is a 2 MP EXIR Bullet Camera designed for HD analog surveillance systems. It provides 1920 × 1080 resolution, 120 dB WDR, Smart IR and EXIR infrared illumination up to 50 m. The camera supports 2.8 mm, 3.6 mm and 6 mm lenses and provides switchable TVI, AHD, CVI and CVBS video output. It features IP66 protection and supports operation from -40°C to 60°C.
