| Features |
Description |
| Camera Type |

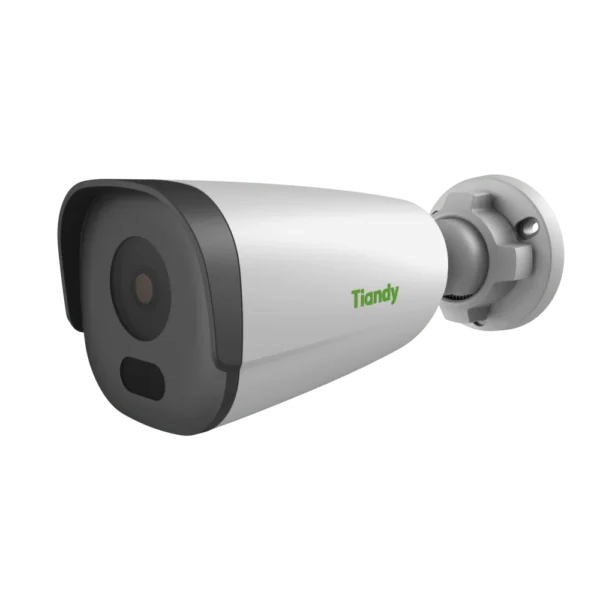

4MP Fixed IR Bullet Camera |
| Image Sensor |
1/2.7″ CMOS |
| Max. Resolution |
2688 × 1520 @ 25fps |
| Lens |
2.8mm / 4mm Fixed Lens |
| Minimum Illumination |
0.02 Lux @ F1.6, AGC ON; 0 Lux with IR |
| IR Range |
Up to 50 m |
| WDR |
Digital WDR |
| Video Compression |
S+265 / H.265 / H.264 |
| Video Analytics |
Tripwire and Perimeter Detection |
| Audio |
Built-in Microphone |
| Network |
10/100 Mbps Ethernet, PoE |
| Protection |
IP67 |
| Camera |
| Image Sensor |
1/2.7″ CMOS |
| Signal System |
PAL / NTSC |
| Shutter Time |
1 s – 1/100,000 s |
| Day & Night |
Dual IR Cut Filter with Auto Switch (ICR) |
| Minimum Illumination |
Color: 0.02 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Wide Dynamic Range |
Digital WDR |
| S/N Ratio |
>39 dB |
| Angle Adjustment |
Pan 0–360°, Tilt 0–75°, Rotation 0–360° |
| Lens |
| Lens Type |
Fixed |
| Focal Length |
2.8mm / 4mm |
| Lens Mount |
M12 |
| Aperture |
F1.6, Fixed |
| Horizontal Field of View |
103.8° (2.8mm) / 88.2° (4mm) |
| Vertical Field of View |
56.1° (2.8mm) / 46.4° (4mm) |
| Diagonal Field of View |
118° (2.8mm) / 101.8° (4mm) |
| DORI – Detect |
56 m (2.8mm) / 80 m (4mm) |
| DORI – Observe |
22.2 m (2.8mm) / 32 m (4mm) |
| DORI – Recognize |
11.2 m (2.8mm) / 16 m (4mm) |
| DORI – Identify |
5.6 m (2.8mm) / 8 m (4mm) |
| Illuminator |
| IR LEDs |
2 |
| IR Distance |
Up to 50 m |
| IR Wavelength |
850 nm |
| Smart IR |
Yes |
| White LEDs / Warm Lights |
N/A |
| Video & Image |
| Video Compression |
S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate |
32 Kbps – 6 Mbps |
| Maximum Resolution |
2688 × 1520 |
| Main Stream |
PAL: 25fps at 2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080 and 1280 × 720; NTSC: 24fps at 2688 × 1520 / 2560 × 1440, 30fps at lower resolutions |
| Sub Stream |
PAL: 25fps; NTSC: 30fps |
| Third Stream |
N/A |
| BLC |
Yes |
| HLC |
Yes |
| AGC |
Yes |
| 3D DNR |
Yes |
| White Balance |
Auto / Semi-Auto / Manual / Sunny / Natural Light / Warm Light / Sodium Lamp / Incandescent / Locked |
| ROI |
8 Fixed Regions |
| OSD |
1 Region |
| Privacy Mask |
4 Regions |
| Smart Defog |
Yes |
| AI & Intelligent Functions |
| Video Analytics |
Tripwire, Perimeter |
| Behavior Rules |
2 Rules in 1 Scene |
| Motion Detection |
Yes |
| Mask Alarm |
Yes |
| Alarm Trigger |
Motion Detection, Mask Alarm, IP Address Conflict |
| Linkage Method |
Trigger Capture |
| Early Warning |
N/A |
| Auto Tracking |
N/A |
| Face Detection |
N/A |
| Audio |
| Built-in Microphone |
Yes |
| Audio Input |
Built-in Microphone |
| Audio Output |
N/A |
| Audio Compression |
G.711A / G.711U / ADPCM_D |
| Audio Sampling Rate |
8 kHz / 32 kHz / 48 kHz |
| Network & Storage |
| Network Interface |
1 × RJ45 10/100 Base-T Ethernet Port |
| ANR |
N/A |
| Protocols |
RTSP, HTTP, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, IPv4 |
| System Compatibility |
ONVIF Profile S/T/G, SDK, CGI, Milestone, P2P |
| Remote Connection |
Up to 2 Clients |
| PC Client |
Easy7 Smart Client |
| Mobile Client |
EasyLive Plus |
| Web Version |
Web6 |
| Storage |
N/A |
| Interface |
| Communication Interface |
1 × RJ45 10/100 Base-T |
| Built-in Microphone |
Yes |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Reset Button |
N/A |
| Power & General |
| Power Supply |
PoE IEEE 802.3af |
| Power Consumption |
Max. 7W |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
0–95% RH |
| Storage Temperature |
-30°C to 60°C |
| Protection |
IP67 |
| Surge Protection |
4000V |
| ESD Protection |
6000V |
| Housing |
Metal + Plastic |
| Dimensions |
165 × 73 × 73 mm |
| Net Weight |
0.45 kg |
Note: Specifications are based on Tiandy TC-C34GN Spec:I5/E/Y/C/2.8mm(4mm)/V4.2 documentation.
Important: TC-C34GN is available with 2.8mm and 4mm fixed-lens options. The V4.2 specification supports up to 4MP resolution, 50m Smart IR, built-in microphone, PoE IEEE 802.3af and IP67 protection. Verify the exact lens variant before publication.
