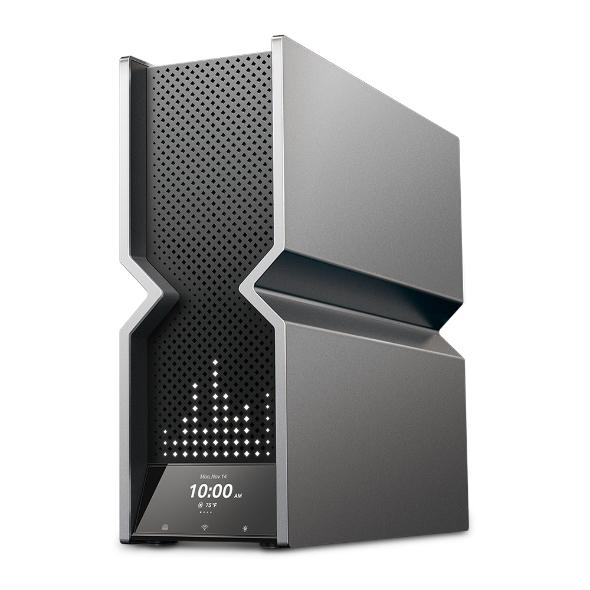

Specifications TP-Link Archer BE900
| Features | Description |
|---|---|
| Product Type | BE24000 Quad-Band Wi-Fi 7 Router |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Total Wi-Fi Speed | Up to 24.4 Gbps |
| Wireless Bands | Quad-Band: 2.4 GHz, 5 GHz-1, 5 GHz-2, 6 GHz |
| Ethernet Ports | 1 × 10 Gbps WAN/LAN, 1 × 10 Gbps SFP+/RJ45 Combo WAN/LAN, 4 × 2.5 Gbps LAN, 1 × 1 Gbps LAN |
| USB Ports | 1 × USB 3.0, 1 × USB 2.0 |
| Wireless | |
|---|---|
| 2.4 GHz | Up to 1376 Mbps |
| 5 GHz-1 | Up to 5760 Mbps |
| 5 GHz-2 | Up to 5760 Mbps |
| 6 GHz | Up to 11520 Mbps |
| Antennas | 12 × High-Performance Internal Antennas |
| Streams | 16 Streams |
| MU-MIMO | 4 × 4 MU-MIMO |
| OFDMA | Supported |
| Beamforming | Supported |
| Wi-Fi Capacity | Very High; supports 250+ devices |
| Wi-Fi 7 Features | |
|---|---|
| Multi-Link Operation | MLO |
| Channel Bandwidth | Up to 320 MHz |
| 4K-QAM | Supported |
| Multi-RU | Supported |
| EasyMesh | Compatible |
| Airtime Fairness | Supported |
| DFS | Supported |
| Network & Hardware | |
|---|---|
| 10G WAN/LAN | 1 × 10 Gbps RJ45 |
| 10G Combo Port | 1 × 10 Gbps SFP+/RJ45 Combo WAN/LAN |
| 2.5G LAN | 4 × 2.5 Gbps LAN |
| Gigabit LAN | 1 × 1 Gbps LAN |
| USB | 1 × USB 3.0 + 1 × USB 2.0 |
| USB File Systems | NTFS, exFAT, HFS+, FAT32 |
| USB Functions | FTP Server, Media Server, Samba Server |
| CPU | Quad-Core CPU |
| Working Modes | Router Mode / Access Point Mode |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| QoS | QoS by Device |
| Security & Management | |
|---|---|
| Wi-Fi Security | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1X) |
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| Security Service | TP-Link HomeShield |
| IoT Network | Supported |
| Guest Network | 6 GHz, 5 GHz-1, 5 GHz-2 and 2.4 GHz Guest Networks |
| Parental Controls | HomeShield Parental Controls |
| Management | TP-Link Tether App / Web Interface |
| Cloud Service | TP-Link ID, DDNS, Auto Firmware Upgrade |
| VPN & NAT | |
|---|---|
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| Protocols | IPv4 / IPv6 |
| DDNS | TP-Link, NO-IP, DynDNS |
| Display & General | |
|---|---|
| Display | LED Screen and Touchscreen |
| Power Supply | 15 V ⎓ 5 A |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90%, Non-Condensing |
| Dimensions | 96 × 302 × 262.5 mm |
Note: Archer BE900 is a high-performance BE24000 Quad-Band Wi-Fi 7 router designed for multi-gigabit home networks. It combines dual 10 Gbps WAN/LAN connectivity, four 2.5 Gbps LAN ports, 16-stream Wi-Fi 7, 320 MHz channels, 4K-QAM and MLO.
Important: Actual wireless performance and maximum connection speeds depend on client-device compatibility, network conditions, environmental factors, ISP service and regional regulations. The 320 MHz channel width is available on the 6 GHz band and may be restricted in some countries or regions.
