| Features |
Description |
| Device Type |
5-Port 10/100/1000Mbps Gigabit Desktop Switch |
| Network Ports |
5 × 10/100/1000Mbps Auto-Negotiation RJ45 Ports |
| Switch Type |
Unmanaged Switch |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.4 Mpps |
| MAC Address Table |
2K |
| Jumbo Frame |
16 KB |
| Flow Control |
IEEE 802.3x Flow Control and Back Pressure |
| Power Efficiency |
Green Ethernet Technology |
| Design |
Fanless Plastic Desktop Design |
| Application |
Home Networks, Small Business, CCTV Surveillance, Computers, Printers, Webcams and IPTV |
| Interface |
5 × 10/100/1000Mbps Auto-Negotiation RJ45 Ports |
| Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Auto Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.4 Mpps |
| MAC Address Table |
2K |
| Packet Buffer Memory |
1.5 Mb |
| Jumbo Frame |
16 KB |
| Transmission Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x Flow Control and Back Pressure |
| Green Technology |
Supported |
| Fan |
Fanless |
| Power Supply |
External Power Adapter, 5VDC / 0.6A |
| Maximum Power Consumption |
3.7 W |
| Maximum Heat Dissipation |
12.617 BTU/h |
| SMART FEATURES |
| 5-Port Gigabit |
Provides Five 10/100/1000Mbps Gigabit Ethernet Ports for High-Speed Wired Network Connectivity |
| Plug and Play |
Unmanaged Design Requires No Configuration and Allows Immediate Network Expansion |
| Green Ethernet |
Automatically Adjusts Power Consumption According to Link Status and Cable Length to Reduce Energy Usage |
| Auto MDI/MDIX |
Automatically Detects the Required Cable Type and Eliminates the Need for Crossover Cables |
| Fanless Design |
Silent Fanless Construction Provides Quiet and Maintenance-Free Operation |
| Store-and-Forward |
Provides Reliable Data Transmission by Checking Packets Before Forwarding Them |
| GENERAL |
| Switch Type |
Unmanaged Gigabit Desktop Switch |
| Network Ports |
5 × Gigabit RJ45 |
| Port Speed |
10/100/1000Mbps |
| Installation Method |
Desktop / Wall Mount |
| Shell Material |
Plastic |
| MAC Address Table |
2K |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 60°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 90% RH, Non-Condensing |
| Dimensions |
90 × 72 × 23 mm |
| Maximum Power Consumption |
3.7 W |
| Certification |
CE, FCC and RoHS |

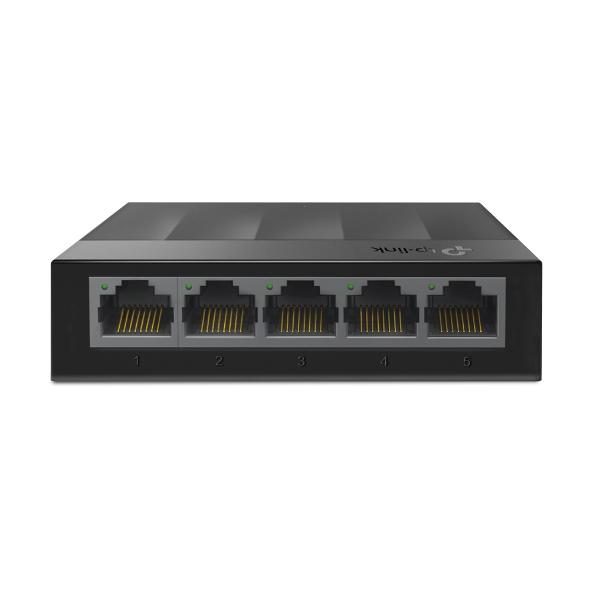

Note: The TP-Link LS1005G is a 5-port 10/100/1000Mbps Gigabit unmanaged desktop switch featuring five Auto-Negotiation RJ45 ports, 10 Gbps switching capacity and 7.4 Mpps packet forwarding performance. It is designed for simple Plug-and-Play network expansion in homes, small businesses and surveillance environments.
Important: The TP-Link LS1005G features Green Ethernet technology for reduced power consumption, IEEE 802.3x flow control, Auto MDI/MDIX and a fanless design for quiet operation. The switch can be installed on a desktop or wall-mounted and requires no configuration.
