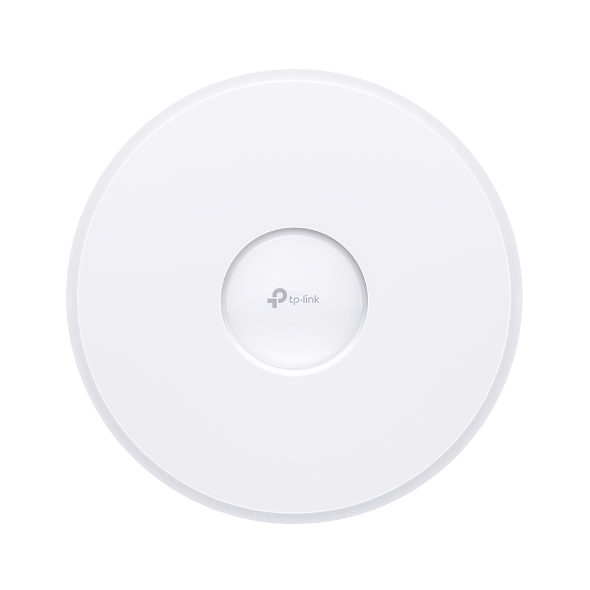

TP-Link Omada EAP780

TP-Link Omada EAP780

TP-LINK OMADA EAP780

BE22000 Tri-Band Wi-Fi 7 Ceiling Mount Access Point

  • Tri-band Wi-Fi 7 with up to 22Gbps combined wireless speed
  • 6GHz up to 11,520Mbps, 5GHz up to 8,640Mbps and 2.4GHz up to 1,376Mbps
  • Supports 320MHz channels, MLO, 4K-QAM, MU-MIMO and OFDMA
  • 2 × 10Gbps Ethernet ports with 802.3bt PoE++ and 12V DC support
  • Omada Mesh, seamless roaming and centralized cloud management
  • Supports WPA3, captive portal, multiple SSIDs and Bluetooth
หมวดหมู่: , , ป้ายกำกับ:

Specifications TP-Link Omada EAP780

Features Description
Product Type BE22000 Tri-Band Wi-Fi 7 Ceiling Mount Access Point
Wi-Fi Standard IEEE 802.11a/b/g/n/ac/ax/be
Wi-Fi Speed Up to 22 Gbps
Frequency Bands 2.4 GHz + 5 GHz + 6 GHz
Ethernet Ports 2 × 10 Gbps Ethernet
USB Port 1 × USB
Power Supply 802.3bt PoE or 12V DC
Management Omada App, Cloud-Based Controller, Hardware Controller, Software Controller
Wireless
2.4 GHz Up to 1376 Mbps
5 GHz Up to 8640 Mbps
6 GHz Up to 11520 Mbps
Channel Width Up to 320 MHz
Modulation 4K-QAM
MU-MIMO Supported
OFDMA Supported
Multi-Link Operation Supported
Multi-RU Supported
Preamble Puncturing Supported
Beamforming Supported
Band Steering Supported
Airtime Fairness Supported
Network & Management
Ethernet Interface 2 × 10 Gbps Ethernet Ports
Omada Mesh Supported
Seamless Roaming Supported
Load Balance Supported
Multiple SSIDs Supported
Automatic Channel Selection Supported
Automatic Power Adjustment Supported
Management Omada App, Omada Cloud-Based Controller, OC200, OC300, Omada Software Controller
Cloud Access Supported
Security
Wireless Security WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
PPSK Supported
Captive Portal Supported
Guest Network Supported
Hardware
Ethernet Ports 2 × 10G Ethernet
USB 1 × USB Port
Power Supply 802.3bt PoE or 12V DC
Mounting Ceiling / Wall Mounting
Mounting Kit Included
Bluetooth Supported
Wi-Fi 7 Features
Multi-Link Operation Supported
320 MHz Channel Supported on 6 GHz
4K-QAM Supported
Multi-RU Supported
Preamble Puncturing Supported
BSS Coloring Supported

Note: EAP780 is a high-performance BE22000 Tri-Band Wi-Fi 7 Access Point with dual 10GbE ports and support for MLO, 320 MHz channels, 4K-QAM, Multi-RU and Preamble Puncturing.

Important: Actual wireless performance depends on client compatibility, network conditions, obstacles, interference and regional regulations. The 320 MHz channel width is available only on the 6 GHz band and may be restricted in some regions.
