| Features |
Description |
| Device Type |
48-Port Gigabit Stackable L3 Managed Switch with 6 × 10G SFP+ Slots |
| Network Ports |
48 × 10/100/1000Mbps RJ45 Ports |
| Uplink Ports |
6 × 10Gbps SFP+ Slots |
| Switch Type |
L3 Managed Stackable Switch |
| Switching Capacity |
216 Gbps |
| Packet Forwarding Rate |
160.7 Mpps |
| MAC Address Table |
32K |
| Packet Buffer Memory |
3 MB |
| Jumbo Frame |
9 KB |
| Stacking |
Physical Stacking up to 8 Units |
| Stack Bandwidth |
Up to 120 Gbps |
| Routing |
Static Routing, RIP, RIPng, OSPF, OSPFv3, ECMP and VRRP |
| Multicast Routing |
PIM-DM and PIM-SM |
| Link Aggregation |
Static Link Aggregation and LACP |
| QoS |
8 Priority Queues, 802.1p/DSCP Priority and Bandwidth Control |
| Management |
Omada SDN, Web GUI, CLI, SNMP and RMON |
| RJ45 Ports |
48 × 10/100/1000Mbps |
| SFP+ Slots |
6 × 10Gbps SFP+ |
| Management Port |
1 × RJ45 Management Port |
| Console Ports |
1 × RJ45 Console Port, 1 × USB Type-C Console Port |
| USB Ports |
2 × USB 2.0 |
| Switching Capacity |
216 Gbps |
| Packet Forwarding Rate |
160.7 Mpps |
| MAC Address Table |
32K |
| Packet Buffer Memory |
3 MB |
| Jumbo Frame |
9 KB |
| Transmission Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x Flow Control |
| PoE |
Not Supported |
| SMART FEATURES |
| 48-Port Gigabit Ethernet |
Provides 48 × 10/100/1000Mbps RJ45 Ports for Gigabit Network Connectivity |
| 10G SFP+ Uplinks |
Provides 6 × 10Gbps SFP+ Slots for High-Bandwidth Uplink, Aggregation and Stacking Applications |
| Physical Stacking |
Supports Physical Stacking of up to 8 Units with up to 120Gbps Stack Bandwidth |
| Layer 3 Routing |
Supports Static Routing, RIP, RIPng, OSPF, OSPFv3, ECMP and VRRP |
| Multicast Routing |
Supports PIM-DM and PIM-SM for Efficient Multicast Routing |
| Omada SDN |
Supports Centralized Cloud Management and Monitoring Through the Omada Software-Defined Networking Platform |
| VLAN |
Supports 802.1Q VLAN and Advanced VLAN Features for Network Segmentation |
| Link Aggregation |
Supports Static Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS |
Supports 8 Priority Queues, 802.1p/DSCP Priority, Bandwidth Control and Queue Scheduling |
| ACL |
Supports IPv4/IPv6 ACL for Network Traffic Filtering and Security |
| IGMP Snooping |
Supports IGMP Snooping for Optimized Multicast Traffic Delivery |
| Spanning Tree |
Supports STP, RSTP and MSTP for Loop Prevention and Network Redundancy |
| ERPS |
Supports Ethernet Ring Protection Switching for Rapid Protection and Recovery |
| VRRP |
Supports VRRP for Gateway Redundancy and High Availability |
| DHCP |
Supports DHCP Server and DHCP Relay |
| Security |
Supports 802.1X, Port Security, ACL, DoS Defense and Other Network Security Features |
| DDM |
Supports Digital Diagnostic Monitoring for Compatible SFP+ Modules |
| Port Mirroring |
Supports Port Mirroring for Network Monitoring and Troubleshooting |
| Redundant Power |
Features Two Internal Fixed Power Supply Modules for Increased Power Reliability |
| GENERAL |
| Switch Type |
L3 Managed Gigabit Stackable Switch |
| Network Ports |
48 × 10/100/1000Mbps RJ45 |
| Uplink Ports |
6 × 10Gbps SFP+ |
| PoE |
Not Supported |
| Management |
Omada SDN, Web GUI, CLI, SNMP and RMON |
| Stacking |
Up to 8 Units |
| Stack Bandwidth |
Up to 120 Gbps |
| Power Supply |
2 × Internal Fixed Power Supply Modules, 100–240V AC, 50/60Hz |
| Fan |
4 × Internal Fixed Fans |
| Maximum Power Consumption |
39.8 W at 220V/50Hz |
| Maximum Heat Dissipation |
135.81 BTU/hr at 220V/50Hz |
| Dimensions |
440 × 380 × 44 mm |
| Installation Method |
19-Inch Rack Mount |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 90% RH, Non-Condensing |

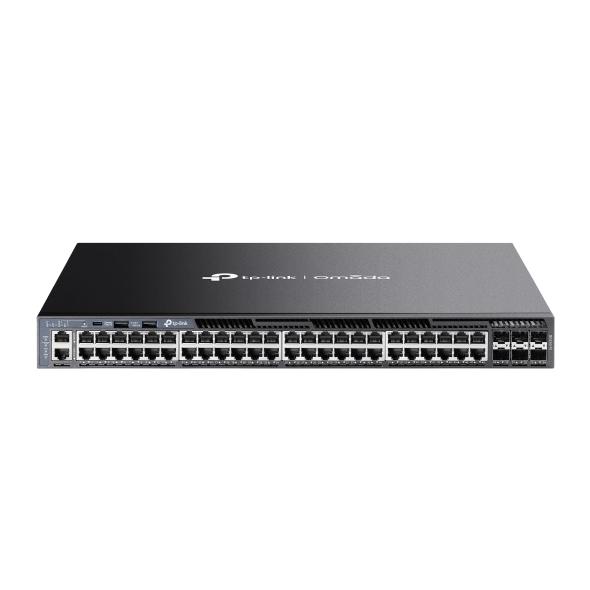

Note: The TP-Link Omada SG6654X is a high-performance L3 managed stackable switch featuring 48 × 10/100/1000Mbps RJ45 ports and 6 × 10Gbps SFP+ slots. It provides 216 Gbps switching capacity, 160.7 Mpps packet forwarding performance, a 32K MAC address table and 3 MB packet buffer memory. It is designed for enterprise, SMB and ISP aggregation networks requiring Gigabit access, 10G uplinks, Layer 3 routing and high availability.
Important: The SG6654X is a non-PoE switch with 48 × Gigabit RJ45 ports and 6 × 10Gbps SFP+ slots. The SFP+ ports can also be used for physical stacking. Up to 8 units can be stacked, with up to 120Gbps stack bandwidth. It also provides two internal fixed power supply modules, four internal fixed fans and extensive Layer 3 routing capabilities.
