| Features |
Description |
| Device Type |
32-Port 10GE SFP+ L2+ Managed Switch |
| Network Ports |
32 × 1/10Gbps SFP+ Slots |
| Console Ports |
1 × RJ45 Console Port, 1 × Micro-USB Console Port |
| Switch Type |
L2+ Managed Switch |
| Switching Capacity |
640 Gbps |
| Packet Forwarding Rate |
476.16 Mpps |
| MAC Address Table |
32K |
| Packet Buffer Memory |
24 Mbit |
| Jumbo Frame |
9 KB |
| VLAN |
802.1Q VLAN and Advanced VLAN Features |
| Routing |
IPv4/IPv6 Static Routing |
| Link Aggregation |
Static Link Aggregation and LACP |
| QoS |
802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| Management |
Omada SDN, Web GUI, CLI, SNMP and RMON |
| Design |
Metal Housing with Rack-Mountable Design |
| SFP+ Slots |
32 × 1/10Gbps SFP+ |
| Console Ports |
1 × RJ45 Console, 1 × Micro-USB Console |
| Port Standard |
IEEE 802.3z 1000BASE-X, IEEE 802.3ae 10GBASE-SR/LR |
| Switching Capacity |
640 Gbps |
| Packet Forwarding Rate |
476.16 Mpps |
| MAC Address Table |
32K |
| Packet Buffer Memory |
24 Mbit |
| Jumbo Frame |
9 KB |
| Transmission Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x Flow Control |
| PoE |
Not Supported |
| SMART FEATURES |
| 32-Port 10G SFP+ |
Provides 32 × 1/10Gbps SFP+ Slots for High-Bandwidth Fiber Network Connections |
| Omada SDN |
Supports Centralized Cloud-Based Management and Monitoring Through Omada Hardware, Software or Cloud-Based Controllers |
| Static Routing |
Supports IPv4/IPv6 Static Routing for Efficient Internal Network Traffic Management |
| 802.1Q VLAN |
Supports VLAN Segmentation for Network Isolation and Traffic Management |
| Link Aggregation |
Supports Static Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS |
Supports 802.1p CoS/DSCP Priority, 8 Priority Queues and SP/WRR/SP+WRR Queue Scheduling |
| ACL |
Supports Access Control Lists for Network Traffic Filtering and Security |
| IGMP Snooping |
Supports IGMP Snooping for Optimized Multicast Traffic Delivery |
| Spanning Tree |
Supports Spanning Tree Protocol for Loop Prevention and Network Redundancy |
| ERPS |
Supports Ethernet Ring Protection Switching for Rapid Protection and Recovery in Ring Network Topologies |
| OAM |
Supports Ethernet Operations, Administration and Maintenance Functions |
| DDM |
Supports Digital Diagnostic Monitoring for Compatible SFP+ Modules |
| Port Mirroring |
Supports Port Mirroring for Network Monitoring and Troubleshooting |
| DHCP |
Supports DHCP Server, DHCP Relay and DHCP L2 Relay |
| IPv6 Support |
Supports IPv6 Interfaces, IPv6 Management, IPv6 ACL and IPv6 Network Applications |
| Network Security |
Supports 802.1X, RADIUS, DHCP Snooping, IP Source Guard, DoS Protection and Other Security Features |
| Redundant Power |
Features 1+1 Redundant Internal Power Supplies for Increased System Reliability |
| GENERAL |
| Switch Type |
L2+ Managed 10G Fiber Switch |
| Network Ports |
32 × 1/10Gbps SFP+ |
| RJ45 Network Ports |
None |
| PoE |
Not Supported |
| Management |
Omada SDN, Web GUI, CLI, SNMP and RMON |
| Power Supply |
1+1 Redundant Internal Power Supply, 100–240V AC, 50/60Hz |
| Fan |
2 × Internal Fixed Fans |
| Maximum Power Consumption |
49.4 W |
| Dimensions |
440 × 330 × 44 mm |
| Installation Method |
19-Inch Rack Mount |
| Operating Temperature |
-5°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 90% RH, Non-Condensing |
| Certification |
CE, FCC and RoHS |

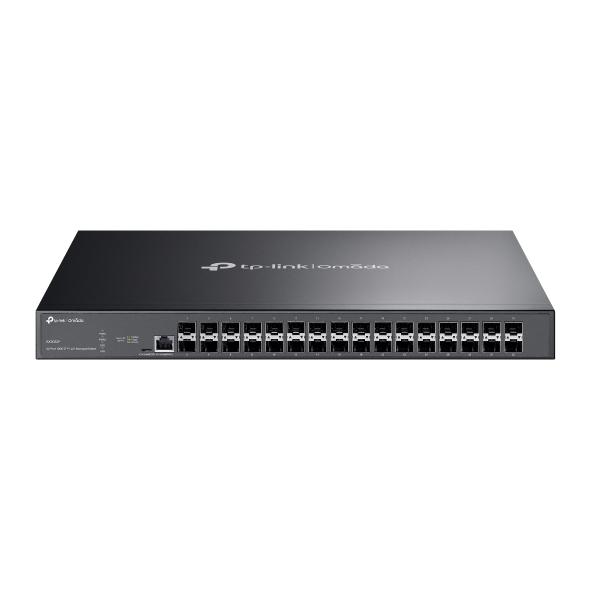

Note: The TP-Link Omada SX3032F is a 32-port 10GE SFP+ L2+ managed switch featuring 32 × 1/10Gbps SFP+ slots, 640 Gbps switching capacity, 476.16 Mpps packet forwarding performance, a 32K MAC address table and 24 Mbit packet buffer memory. It is designed for 10G fiber aggregation, core networks, servers, NAS systems and high-bandwidth network backbones.
Important: The SX3032F is a fiber-only switch. It has no RJ45 network ports and does not provide PoE. All 32 network ports are SFP+ and support 1Gbps/10Gbps connections. It also features 1+1 redundant internal power supplies for improved reliability.
