| Features |
Description |
| Device Type |
6-Port 10GE L2+ Managed Switch with 4-Port PoE++ |
| Network Ports |
4 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports |
| Uplink Ports |
2 × 10Gbps SFP+ Slots |
| Switch Type |
L2+ Managed Switch |
| PoE Standard |
IEEE 802.3af/at/bt (Type 3) |
| PoE Power per Port |
Up to 60W |
| Total PoE Budget |
200W |
| Switching Capacity |
120 Gbps |
| Packet Forwarding Rate |
89.28 Mpps |
| MAC Address Table |
16K |
| Packet Buffer Memory |
12 Mbit |
| Jumbo Frame |
9 KB |
| VLAN |
802.1Q VLAN, MAC VLAN, Protocol VLAN, Private VLAN and Voice VLAN |
| Routing |
IPv4/IPv6 Static Routing |
| Link Aggregation |
Static Link Aggregation and LACP |
| QoS |
802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| Management |
Omada SDN, Web GUI, CLI, SNMP and RMON |
| PoE++ RJ45 Ports |
4 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps |
| SFP+ Slots |
2 × 10Gbps SFP+ |
| Console Ports |
1 × RJ45 Console Port, 1 × Micro-USB Console Port |
| PoE Standard |
IEEE 802.3af/at/bt (Type 3) |
| PoE Power per Port |
Up to 60W |
| Total PoE Budget |
200W |
| Switching Capacity |
120 Gbps |
| Packet Forwarding Rate |
89.28 Mpps |
| MAC Address Table |
16K |
| Packet Buffer Memory |
12 Mbit |
| Jumbo Frame |
9 KB |
| Transmission Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x Flow Control |
| SMART FEATURES |
| 10G Multi-Gigabit PoE++ |
Provides 4 × RJ45 Ports Supporting 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps with PoE++ |
| 10G SFP+ Uplinks |
Provides 2 × 10Gbps SFP+ Slots for High-Bandwidth Fiber or DAC Connections |
| PoE++ |
Supports IEEE 802.3af/at/bt with up to 60W PoE Output per Port |
| 200W PoE Budget |
Provides up to 200W Total PoE Power for High-Power Access Points, PTZ Cameras and Other PoE Devices |
| Omada SDN |
Supports Centralized Cloud Management and Monitoring Through the Omada Software-Defined Networking Platform |
| Static Routing |
Supports IPv4/IPv6 Static Routing for Efficient Internal Network Traffic Management |
| 802.1Q VLAN |
Supports VLAN Segmentation for Network Isolation and Traffic Management |
| Link Aggregation |
Supports Static Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS |
Supports 802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| ACL |
Supports Access Control Lists for Network Traffic Filtering and Security |
| IGMP Snooping |
Supports IGMP Snooping and MLD Snooping for Optimized Multicast Traffic Delivery |
| Spanning Tree |
Supports STP, RSTP and MSTP for Loop Prevention and Network Redundancy |
| ERPS |
Supports Ethernet Ring Protection Switching for Rapid Protection and Recovery in Ring Network Topologies |
| OAM |
Supports Ethernet Operations, Administration and Maintenance Functions |
| DDM |
Supports Digital Diagnostic Monitoring for Compatible SFP+ Modules |
| 802.1X |
Supports Port-Based and MAC-Based Authentication with RADIUS |
| DHCP Snooping |
Helps Protect the Network Against Unauthorized DHCP Servers and DHCP-Based Attacks |
| IP Source Guard |
Helps Prevent IP Address Spoofing and Unauthorized Network Access |
| Port Security |
Controls Access to Network Ports Based on MAC Addresses |
| Storm Control |
Controls Broadcast, Multicast and Unknown Unicast Traffic to Prevent Network Congestion |
| GENERAL |
| Switch Type |
L2+ Managed 10G Multi-Gigabit PoE++ Switch |
| Network Ports |
4 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 |
| Uplink Ports |
2 × 10Gbps SFP+ |
| PoE Standard |
IEEE 802.3af/at/bt (Type 3) |
| PoE Power per Port |
Up to 60W |
| Total PoE Budget |
200W |
| Management |
Omada SDN, Web GUI, CLI, SNMP and RMON |
| Installation Method |
Desktop or 19-Inch Rack Mount |
| Enclosure |
Metal Housing |
| Fan |
2 × Fans |
| Power Supply |
100–240V AC, 50/60Hz |
| Maximum Power Consumption |
244.90W at 110V/60Hz with 200W PoE Load |
| Maximum Heat Dissipation |
835.67 BTU/hr at 110V/60Hz with 200W PoE Load |
| Dimensions |
294 × 180 × 44 mm |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 90% RH, Non-Condensing |
| Certification |
CE, FCC and RoHS |

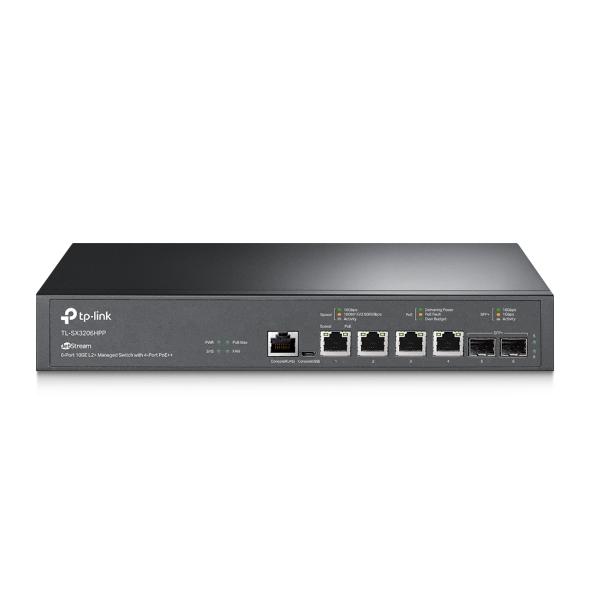

Note: The TP-Link Omada SX3206HPP is a 6-port 10GE L2+ managed switch featuring 4 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 ports and 2 × 10Gbps SFP+ slots. It provides 120 Gbps switching capacity, 89.28 Mpps packet forwarding performance, a 16K MAC address table and 12 Mbit packet buffer memory. It is designed for high-speed Wi-Fi 6/7 access points, PTZ IP cameras, smart building devices and other high-bandwidth PoE applications.
Important: The SX3206HPP supports 10Gbps on all 4 RJ45 ports and up to 60W PoE++ per port, with a total PoE budget of 200W. The 2 SFP+ slots support 10Gbps connections. It can be installed on a desktop or mounted in a 19-inch rack.
