| Features |
Description |
| Device Type |
5-Port 2.5G Multi-Gigabit Desktop Switch |
| Network Ports |
5 × 100Mbps/1Gbps/2.5Gbps Auto-Negotiation RJ45 Ports |
| Switch Type |
Unmanaged Switch |
| Switching Capacity |
25 Gbps |
| Packet Forwarding Rate |
18.6 Mpps |
| MAC Address Table |
4K |
| Packet Buffer Memory |
8 Mbit |
| Jumbo Frame |
12 KB |
| QoS |
802.1p/DSCP QoS |
| Multicast |
IGMP Snooping |
| Loop Prevention |
Supported |
| Design |
Fanless Metal Housing |
| Interface |
5 × 100Mbps/1Gbps/2.5Gbps RJ45 Ports |
| Port Speed |
100Mbps / 1Gbps / 2.5Gbps |
| Auto Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Switching Capacity |
25 Gbps |
| Packet Forwarding Rate |
18.6 Mpps |
| MAC Address Table |
4K |
| Packet Buffer Memory |
8 Mbit |
| Jumbo Frame |
12 KB |
| Transmission Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x Flow Control |
| QoS |
802.1p/DSCP QoS |
| IGMP Snooping |
Supported |
| Loop Prevention |
Supported |
| PoE |
Not Supported |
| SMART FEATURES |
| 5-Port 2.5G |
Provides Five 2.5Gbps Multi-Gigabit Ports for High-Speed Network Connections |
| Multi-Gigabit Compatibility |
Supports 100Mbps, 1Gbps and 2.5Gbps Ethernet Speeds with Automatic Negotiation |
| Cat5e Compatibility |
Supports 2.5Gbps Networking over Existing Cat5e, Cat6 and Cat6a Cabling |
| 25Gbps Switching |
Provides Up to 25Gbps Switching Capacity for High-Bandwidth Multi-Gigabit Network Traffic |
| Loop Prevention |
Automatically Detects and Blocks Network Loops to Help Maintain Stable Network Operation |
| 802.1p/DSCP QoS |
Prioritizes Network Traffic to Improve Performance for Delay-Sensitive Applications |
| IGMP Snooping |
Optimizes Multicast Traffic Delivery to Reduce Unnecessary Multicast Traffic on the Network |
| Plug and Play |
Unmanaged Design Requires No Configuration and Allows Immediate Network Deployment |
| Fanless Design |
Fanless Construction Provides Silent Operation Without Fan Noise |
| GENERAL |
| Switch Type |
Unmanaged 2.5G Multi-Gigabit Desktop Switch |
| Network Ports |
5 × 100Mbps/1Gbps/2.5Gbps RJ45 |
| PoE |
Not Supported |
| Installation Method |
Desktop / Wall Mount |
| Enclosure |
Metal Housing |
| Fan |
Fanless |
| Power Supply |
External Power Adapter, 9VDC / 0.6A |
| Maximum Power Consumption |
5.64 W |
| Maximum Heat Dissipation |
19.18 BTU/h |
| Dimensions |
209 × 126 × 26 mm |
| Operating Temperature |
-5°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 90% RH, Non-Condensing |
| Certification |
CE, FCC and RoHS |

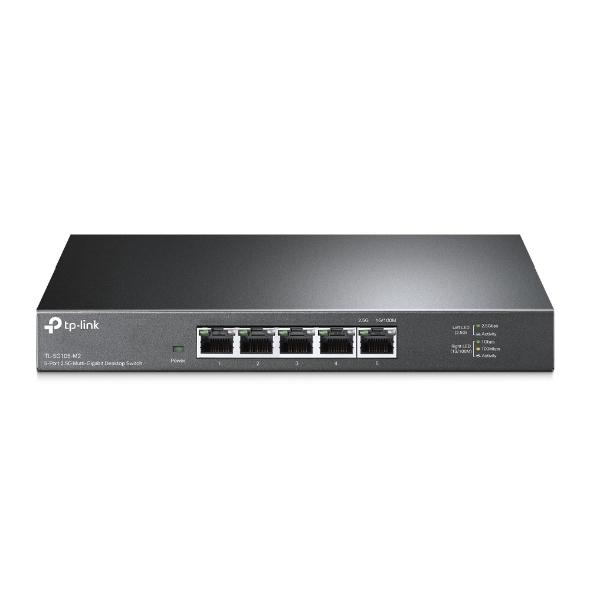

Note: The TP-Link TL-SG105-M2 is a 5-port 2.5G Multi-Gigabit unmanaged desktop switch featuring 5 × 100Mbps/1Gbps/2.5Gbps RJ45 ports, 25 Gbps switching capacity, 18.6 Mpps packet forwarding performance and a 4K MAC address table. It is suitable for 2.5G NAS, servers, workstations, Wi-Fi 6/7 access points and high-speed LAN environments.
Important: The TL-SG105-M2 is an unmanaged switch and does not provide PoE. All five ports support up to 2.5Gbps, and the switch can achieve 2.5Gbps over existing Cat5e cabling. It features Loop Prevention, 802.1p/DSCP QoS, IGMP Snooping, Plug-and-Play operation and a fanless metal design.
