| Features |
Description |
| Device Type |
5-Port Gigabit Easy Smart Switch |
| Network Ports |
5 × 10/100/1000Mbps RJ45 Ports |
| Switch Type |
Easy Smart Switch |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.4 Mpps |
| MAC Address Table |
2K |
| Packet Buffer Memory |
1 Mb |
| Jumbo Frame |
Up to 15 KB |
| VLAN |
MTU VLAN, Port-Based VLAN and 802.1Q Tag VLAN; Up to 32 VLANs |
| QoS |
Port-Based, 802.1p and DSCP Priority; 4 Priority Queues |
| Management |
Web-Based User Interface and Easy Smart Configuration Utility |
| Design |
Fanless |
| Interface |
5 × 10/100/1000Mbps RJ45 Ports |
| Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Port Speed |
10/100/1000Mbps |
| Auto Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Network Media |
10BASE-T, 100BASE-TX and 1000BASE-T, up to 100 m |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.4 Mpps |
| MAC Address Table |
2K |
| Packet Buffer Memory |
1 Mb |
| Jumbo Frame |
Up to 15 KB |
| Transmission Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x Flow Control |
| PoE |
Not Supported |
| SMART FEATURES |
| 5-Port Gigabit |
Provides 5 × 10/100/1000Mbps Gigabit Ethernet Ports for High-Speed Wired Network Connectivity |
| 802.1Q VLAN |
Supports 802.1Q Tag VLAN for Network Segmentation and Traffic Isolation, with Up to 32 VLANs Simultaneously |
| Port-Based VLAN |
Allows Network Traffic to be Separated by Physical Port for Improved Network Organization and Security |
| MTU VLAN |
Provides Port Isolation to Separate Network Traffic Between Ports |
| QoS |
Supports Port-Based, 802.1p and DSCP Priority with 4 Priority Queues for Traffic Prioritization |
| IGMP Snooping |
Supports IGMP Snooping v1/v2/v3 to Optimize Multicast Traffic Delivery |
| Link Aggregation |
Supports Static Link Aggregation for Combining Multiple Physical Links to Increase Bandwidth and Redundancy |
| Port Mirroring |
Copies Network Traffic from Selected Ports to a Monitoring Port for Network Analysis and Troubleshooting |
| Loop Prevention |
Helps Detect and Prevent Network Loops for More Stable Network Operation |
| Storm Control |
Controls Excessive Broadcast, Multicast and Unknown-Unicast Traffic to Improve Network Stability |
| Rate Limit |
Allows Network Traffic Bandwidth to be Limited on Individual Ports |
| Cable Diagnostics |
Helps Detect Cable Connection Problems and Identify Cable Faults |
| Web Management |
Provides Web-Based Management and Configuration Through a User Interface |
| Energy Efficient |
Automatically Adjusts Power Consumption According to Link Status and Cable Length |
| GENERAL |
| Switch Type |
Easy Smart Gigabit Switch |
| Network Ports |
5 × 10/100/1000Mbps RJ45 |
| PoE |
Not Supported |
| Management |
Web-Based GUI and Easy Smart Configuration Utility |
| Installation Method |
Desktop / Wall Mount |
| Fan |
Fanless |
| Power Supply |
External Power Adapter, 5VDC / 0.6A |
| Maximum Power Consumption |
2.66 W |
| Maximum Heat Dissipation |
9.07 BTU/h |
| Dimensions |
100 × 98 × 25 mm |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 90% RH, Non-Condensing |
| Certification |
CE, FCC and RoHS |

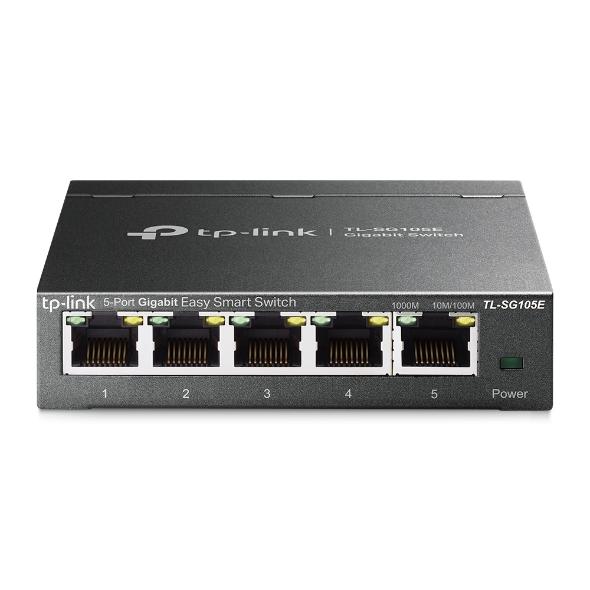

Note: The TP-Link TL-SG105E is a 5-port Gigabit Easy Smart Switch featuring 5 × 10/100/1000Mbps RJ45 ports, 10 Gbps switching capacity, 7.4 Mpps packet forwarding performance and a 2K MAC address table. It provides VLAN, QoS, IGMP Snooping, Link Aggregation, Port Mirroring, Loop Prevention and Cable Diagnostics features for small and medium business networks.
Important: The TL-SG105E is an Easy Smart Switch rather than a fully managed switch. It supports web-based management and an Easy Smart Configuration Utility, but it does not provide PoE. TP-Link currently lists hardware versions V1, V2, V3, V4 and V5, so some specifications and features may vary by hardware version.
