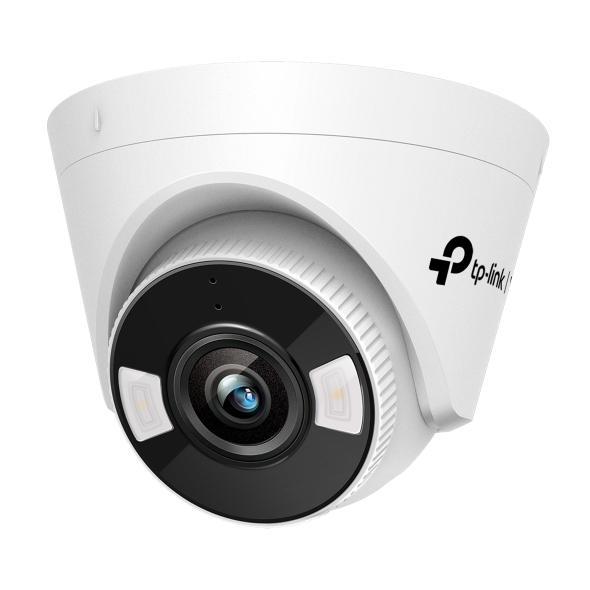

Specifications TP-Link VIGI C440-W
| Features | Description |
|---|---|
| Device Type | 4MP Full-Color Wi-Fi Turret Network Camera |
| Brand / Series | TP-Link / VIGI Professional Surveillance Series |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 4MP (2560 × 1440) @ 30 fps |
| Lens Specifications | 2.8 mm / 4 mm fixed focal lens options |
| Field of View | (2.8mm) Horizontal FOV: 101° | Vertical FOV: 57° | Diagonal FOV: 123° (4mm) Horizontal FOV: 79°–80° | Vertical FOV: 43° | Diagonal FOV: 93°–94.2° |
| Minimum Illumination | Color: 0.005 Lux; 0 Lux with white light active |
| Night Vision Range | 24/7 Full-Color Illumination / IR Night Vision up to 30 meters (98 feet) |
| Form Factor / Housing | Turret Design / Durable Plastic Enclosure |
| VIDEO, WIRELESS & PERFORMANCE | |
|---|---|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Wireless Connectivity | Wi-Fi 2.4 GHz, IEEE 802.11b/g/n with built-in 2×2 MIMO dual antennas (Supports AP and AP Client mode) |
| Image Enhancements | WDR (Wide Dynamic Range), 3D DNR, BLC, HLC, Smart IR |
| Smart Detection | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, Region Entering/Exiting, Object Abandoned/Removal, Motion Detection |
| Active Defense | Built-in strobe light and siren to warn off intruders instantly |
| MANAGEMENT & AUDIO INTERFACES | |
|---|---|
| Management Software | VIGI App, VIGI Security Manager, VIGI NVR, Web UI |
| Audio Interface | Built-in Microphone (captures audio within a 15-ft / 5-meter radius) & Built-in Speaker supporting Two-Way Audio |
| Edge Storage | Built-in MicroSD card slot supporting up to 512 GB local storage |
| Integration Support | ONVIF Compliance |
| POWER & PHYSICAL SPECIFICATIONS | |
|---|---|
| Power Supply | 12V DC ± 5% (5.5mm Coaxial Power Plug) or Power over Ethernet (PoE IEEE 802.3af/at, Class 0) |
| Power Consumption | Maximum 6.6 W to 7 W |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port (optional wired hookup alongside Wi-Fi) |
| Dimensions & Weight | 123 × 123 × 84 mm (4.8 × 3.3 × 4.8 in) | Approx. 0.24 kg to 0.40 kg (Gross) |
| Operating Environment | -30°C to 60°C (-22°F to 140°F); Humidity: 95% or less (non-condensing) |
Note: The TP-Link VIGI C440-W is a high-performance 4MP full-color turret network camera featuring flexible 2.4GHz Wi-Fi connectivity and dual 2×2 MIMO antennas for clean wireless deployments. Equipped with smart AI target classification for humans and vehicles, active defense capabilities (light and sound alarms), and a built-in mic and speaker, it offers robust and intelligent surveillance.
Important: The VIGI C440-W supports both 2.4GHz Wi-Fi connectivity and an optional wired Ethernet port with PoE. It delivers crisp 4MP Super-HD resolution with 24/7 full-color imaging, houses a MicroSD slot supporting up to 512 GB, and operates reliably across extreme temperatures ranging from -30°C to 60°C.
