| Features |
Description |
| Device Type |
4MP Outdoor Wi-Fi Pan/Tilt Network Camera |
| Brand / Series |
TP-Link / VIGI Professional Surveillance Series |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
4MP 2K QHD (2560 × 1440) @ 30 fps |
| Lens Specifications |
4 mm fixed focal lens (F1.6) |
| Field of View |
Horizontal FOV: 80° | Vertical FOV: 43.2° | Diagonal FOV: 94.2° |
| Pan/Tilt Range |
Pan: 0° to 350°, Tilt: 0° to 120° (Flexible PTZ control) |
| Night Vision Range |
Smart IR & White Light illumination up to 30 meters (98 feet) for 24/7 full-color |
| Protection Rating |
IP66 Weatherproof Housing |
| VIDEO, WIRELESS & AI PERFORMANCE |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Wireless Connectivity |
Wi-Fi IEEE 802.11b/g/n (2.4 GHz), supports AP and AP Client mode |
| Smart Detection |
Human & Vehicle Classification, Motion Detection, Area Intrusion, Line-Crossing, Camera Tampering |
| Audio Capabilities |
Built-in Microphone and Speaker supporting Two-Way Audio |
| MANAGEMENT & STORAGE |
| Management Software |
VIGI App, VIGI Security Manager, VIGI NVR, Web UI |
| Edge Storage |
Built-in MicroSD card slot supporting up to 256 GB local storage |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port (optional wired connection) |
| Integration Support |
ONVIF Compliance |
| POWER & PHYSICAL SPECIFICATIONS |
| Power Supply |
12V DC ± 5% (5.5mm Coaxial Power Plug) |
| Power Consumption |
Maximum 15.5 W |
| Dimensions & Weight |
120 × 172 × 198 mm | Approx. 0.69 kg |
| Operating Environment |
-30°C to 60°C (-22°F to 140°F); Humidity: 95% or less (non-condensing) |

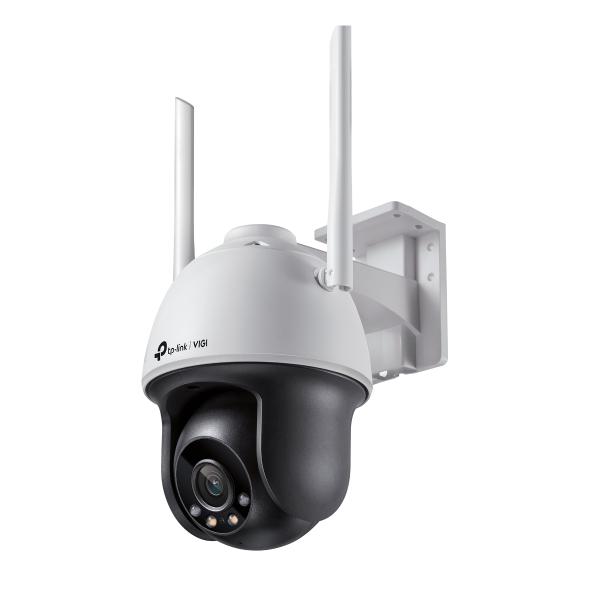

Note: The TP-Link VIGI C540-W is a versatile 4MP outdoor pan/tilt network camera combining flexible wireless connectivity with 360-degree surveillance capabilities. Featuring 24/7 full-color imaging, smart AI detection to accurately target humans and vehicles, and an active two-way audio system, it provides robust and comprehensive perimeter protection.
Important: The VIGI C540-W supports both 2.4GHz Wi-Fi networking and an optional wired Ethernet connection. It delivers 4MP Super-HD resolution with pan and tilt flexibility, houses a MicroSD slot supporting up to 256 GB, and is housed in an IP66-rated weatherproof enclosure built for operating environments ranging from -30°C to 60°C.
