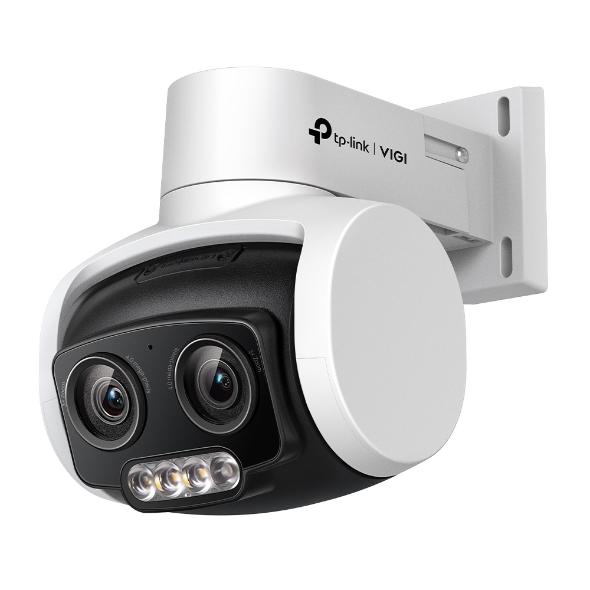

Specifications TP-Link VIGI C540V

Features	Description
Product Type	4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
Image Sensor	1/3″ Progressive Scan CMOS
Resolution	4MP, 2560 × 1440
Lens	4–12mm Varifocal Lens
Zoom	3× Mixed Zoom
Pan / Tilt	Pan 0°–332°, Tilt 0°–120°
Illumination	IR and White Light up to 30m
AI Detection	Human & Vehicle Classification
Protection	IP66

CAMERA & LENS
Image Sensor	1/3″ Progressive Scan CMOS
Max. Resolution	2560 × 1440
Shutter Speed	1/3 to 1/10000s
Minimum Illumination	0.005 Lux; 0 Lux with IR / White Light
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
WDR	Digital WDR
Focal Length	4–12mm Mixed Zoom
Aperture	F1.6
Field of View	Diagonal 100°, Horizontal 84°, Vertical 46°
Lens Mount	M12 × P0.5

PTZ & ZOOM
Pan Range	0° to 332°
Tilt Range	0° to 120°
Pan Speed	1°–55°/s, Preset Speed 55°/s
Tilt Speed	1°–40°/s, Preset Speed 40°/s
Presets	300
Patrol Scan	8 Patrols, up to 8 Presets per Patrol
3D Positioning	Supported
Power-Off Memory	Supported
Park Action	Preset / Patrol Scan
Zoom	3× Mixed Zoom

ILLUMINATOR
IR LED	1 × IR LED, up to 30m, 850nm
White LED	3 × White LEDs, up to 30m
Illuminator Control	Auto / Scheduled / Always On / Always Off
Smart IR	Supported

VIDEO
Main Stream	2560 × 1440 / 2304 × 1296 / 2048 × 1280 / 1920 × 1080 / 1280 × 720
Frame Rate	Up to 30fps at 60Hz; up to 25fps at 50Hz
Sub-Stream	640 × 480 / 352 × 288 / 320 × 240
Video Compression	H.265+ / H.265 / H.264+ / H.264
Sub-Stream Compression	H.265 / H.264
Bit Rate	Main 256Kbps–4Mbps; Sub 64Kbps–512Kbps
Image Enhancement	BLC / 3D DNR / HLC / Smart IR
Privacy Mask	Up to 4 Masks
ROI	1 Region

SMART DETECTION
Human & Vehicle Classification	Supported
Intrusion Detection	Supported
Line-Crossing Detection	Supported
Region Entering / Exiting	Supported
Object Abandoned / Removal	Supported
Loitering Detection	Supported
People Detection	Supported
Vehicle Detection	Supported
Motion Detection	Supported
Video Tampering	Supported
Scene Change Detection	Supported
Auto Tracking	Supported

AUDIO & STORAGE
Built-in Microphone	Yes
Built-in Speaker	Yes
Two-Way Audio	Supported
Audio Compression	G.711 A-law, 64Kbps
Audio Sampling	8kHz
Noise Filtering	Supported
Memory Card	MicroSD up to 256GB
Network Storage	NAS via NFS / SMB / CIFS
FTP Storage	FTP / SFTP

NETWORK & INTERFACE
Network Interface	1 × 10/100M RJ45 Ethernet
PoE	IEEE 802.3af/at, Class 0
ONVIF	Profile S
Cloud	Supported
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP, SFTP, RTP, IPv4, IPv6, ARP
Web Browser	Chrome, Firefox, Safari, Microsoft Edge
Simultaneous Live View	3 Main Streams + 3 Sub-Streams
Client Software	VIGI App / VIGI Security Manager / VIGI NVR / Web
Reset Button	Yes

POWER & PHYSICAL
Power Supply	12V DC ±5% or PoE 802.3af/at
Maximum Power Consumption	14W
Typical Day Mode	2.9W
Typical Night Mode with IR	5.7W
Typical Night Mode with White Light	6.1W
Material	Plastic
Dimensions	107 × 136 × 139mm
Net Weight	0.43kg
Installation	Ceiling / Wall / Pole Mount

ENVIRONMENT
Operating Temperature	-30°C to +60°C
Storage Temperature	-40°C to +60°C
Operating Humidity	95% RH or Less, Non-Condensing
Storage Humidity	95% RH or Less, Non-Condensing
Protection	IP66
Certifications	CE / RCM / BSMI / VCCI / KC / RoHS / NTRA / FCC / IC

Note: The TP-Link VIGI C540V is a 4MP outdoor dual-lens varifocal pan-tilt network camera with 3× mixed zoom, human and vehicle classification, smart detection, IR/white-light illumination and two-way audio.

Important: The camera supports both 12V DC power and PoE 802.3af/at. For IP66 protection, the camera should be installed perpendicular to the ground and the supplied waterproof cable accessories should be properly installed.
