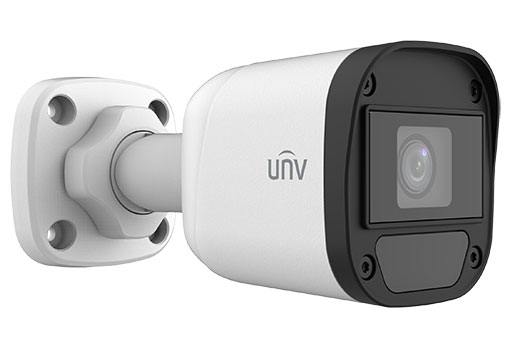

Specifications Uniview UAC-B115-F28(40)
| Features |
Description |
| Product Type |
5MP HD Fixed IR Mini Bullet Analog Camera |
| Image Sensor |
1/2.7″ CMOS |
| Max. Resolution |
5MP |
| Lens |
2.8mm / 4.0mm Fixed Lens |
| Night Vision |
IR up to 20m |
| Video Output |
TVI / AHD / CVI / CVBS |
| Protection |
IP67 |
| Camera |
| Sensor |
1/2.7″ CMOS, 5MP |
| Minimum Illumination |
0.02 Lux @ F2.0, AGC ON; 0 Lux with IR ON |
| Day/Night |
Auto / Day / Night |
| IR Cut Filter |
ICR with Auto Switch |
| Lens & Illuminator |
| Lens |
2.8mm / 4.0mm Fixed Lens |
| Lens Mount |
M12 |
| Field of View |
2.8mm: H 102.2° / V 53.9° / D 124.8°
4.0mm: H 82.9° / V 46.1° / D 100.0° |
| IR Illuminator |
1 × IR Illuminator |
| IR Distance |
Up to 20m |
| IR Lifetime |
≥60,000 Hours |
| Video |
| Resolution |
5MP: 2880 × 1620 @ 25fps
5MP: 2592 × 1944 @ 20/12.5fps
4MP: 2560 × 1440
1080P: 1920 × 1080 |
| TVI |
5MP@20fps, 5MP@12.5fps, 4MP@30/25fps, 1080P@30/25fps |
| AHD |
5MP@20fps, 4MP@30/25fps, 1080P@30/25fps |
| CVI |
5MP@25fps, 4MP@30/25fps, 1080P@30/25fps |
| CVBS |
PAL / NTSC |
| Shutter Time |
PAL: 1/25s–1/50000s
NTSC: 1/30s–1/50000s |
| Image |
| Exposure Mode |
Global / BLC / HLC / DWDR |
| White Balance |
Auto / Manual |
| Digital Noise Reduction |
2D DNR |
| WDR |
DWDR |
| Smart IR |
Supported |
| Flip |
180° Horizontal / 180° Vertical |
| OSD |
11 Languages |
| Interface |
| Video Output |
1 × BNC, TVI / AHD / CVI / CVBS |
| Power Interface |
5.5mm DC Power Interface |
| Power & Physical |
| Power Supply |
DC 12V ±25% |
| Power Protection |
Reverse Polarity Protection and Surge Protection |
| Power Consumption |
Max. 3.6W |
| Mount |
3D Bracket, Surface Mount; Optional Backbox / Pole Mount Bracket |
| Dimensions |
142 × 63 × 65mm |
| Material |
Plastic |
| Weight |
135g |
| Environment |
| Operating Temperature |
-30°C to 60°C |
| Humidity |
≤95% RH, Non-condensing |
| Surge Protection |
4KV |
| Ingress Protection |
IP67 |
| Certifications |
CB, CE, FCC |
Note: UAC-B115-F28 uses a 2.8mm lens, while UAC-B115-F40 uses a 4.0mm lens. Both models provide 5MP resolution and up to 20m IR night vision.
Important: Specifications may vary by product revision. Please refer to the latest Uniview datasheet before installation.
