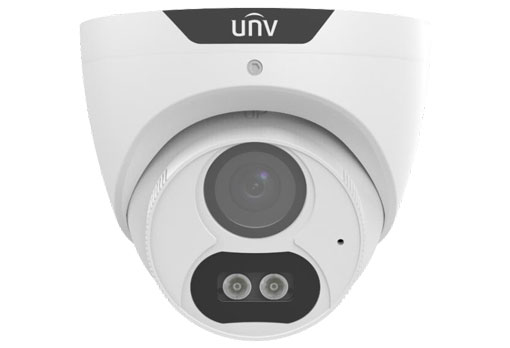

Specifications Uniview UAC-T122-AF40M-W
| Features | Description |
|---|---|
| Product Type | 2MP ColorHunter HD Fixed Turret Analog Camera |
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 2MP, 1920 × 1080 |
| Lens | 4.0mm Fixed Lens, M12 |
| Video Format | TVI / AHD / CVI / CVBS |
| Illumination | White Light, up to 40m |
| Audio | Built-in Microphone |
| Protection | IP67 |
| CAMERA | |
|---|---|
| Sensor | 1/2.9″ CMOS |
| Pixel | 2MP |
| Minimum Illumination | 0.005 Lux (F1.6, AGC ON); 0 Lux with White Light ON |
| Day/Night | 24/7 Color Images |
| Shutter Time | PAL: 1/25s–1/50000s; NTSC: 1/30s–1/50000s |
| Exposure Mode | Global / BLC / HLC / DWDR |
| Digital Noise Reduction | 2D/3D DNR |
| White Balance | Auto / Manual |
| WDR | DWDR |
| Digital Defog | Supported |
| Image Flip | 180° Horizontal / 180° Vertical |
| LENS | |
|---|---|
| Lens | 4.0mm Fixed Lens |
| Lens Mount | M12 |
| Horizontal FOV | 83.8° |
| Vertical FOV | 42.7° |
| Diagonal FOV | 100.1° |
| WHITE LIGHT | |
|---|---|
| Illuminators | 2 × White-Light Illuminators |
| Illumination Distance | Up to 40m |
| Illuminator Lifetime | ≥60,000 Hours |
| Color Imaging | 24/7 Full-Color Imaging |
| VIDEO | |
|---|---|
| Resolution | 1080P: 1920 × 1080; 720P: 1280 × 720 |
| TVI | 1080P@25/30fps; 720P@25/30fps |
| AHD | 1080P@25/30fps; 720P@25/30fps |
| CVI | 1080P@25/30fps; 720P@25/30fps |
| CVBS | PAL / NTSC |
| AUDIO & INTERFACE | |
|---|---|
| Microphone | Built-in Microphone |
| Audio Transmission | TVI / CVI Coaxial Audio Transmission |
| Video Output | 1 × BNC, TVI / AHD / CVI / CVBS |
| Power Interface | 5.5mm DC Power Interface |
| POWER & PHYSICAL | |
|---|---|
| Power Supply | DC 12V ±25% |
| Power Consumption | Max. 3.12W |
| Material | Metal + Plastic |
| Dimensions | Ø111 × 96mm |
| Weight | Approx. 356g |
| Mounting | Surface Mount; Optional Junction Box and Wall Mount Bracket |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-condensing |
| Surge Protection | 4kV |
| Ingress Protection | IP67 |
| Certifications | CE, FCC, UL |
Note: The UAC-T122-AF40M-W is a 2MP ColorHunter analog turret camera with a 4.0mm fixed lens, 40m white-light illumination, built-in microphone, and 24/7 full-color imaging.
Important: This model uses white-light illumination rather than infrared illumination. Specifications may vary by product revision.
